GIÁC HÚT CHÂN KHÔNG VMECA SERIES FF15X
VMECA - FF15X
VMECA - KOREA
Theo tiêu chuẩn nhà sản xuất
0985.288.164
HOTLINE TƯ VẤN : 0985.288.164

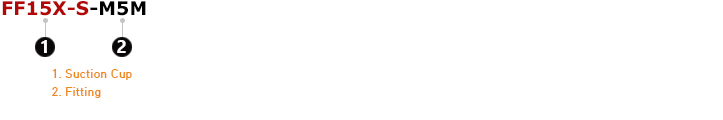

BUILD AND ORDER:
1. Suction Cup
| Part Number | Description |
| FF15X-N | Mark-free suction cup, 15 mm, Nitrile (NBR) |
| FF15X-S | Mark-free suction cup, 15 mm, Silicone |
| FF15X-WS | Mark-free suction cup, 15 mm, White silicone |
| FF15X-WS(FDA) | Mark-free suction cup, 15 mm, White silicone (FDA) |
| FF15X-HS | Mark-free suction cup, 15 mm, High temp silicone |
| FF15X-CS | Mark-free suction cup, 15 mm, Conductive silicone |
| FF15X-U | Mark-free suction cup, 15 mm, Urethane |
| FF15X-A | Mark-free suction cup, 15 mm, Mark free |
2. Fitting Size
| Code | Description |
| Blank | No fitting |
| M5M | Fitting, M5 male |
SPECIFICITIONS:
1. Recommended Lifting Maximum Force
| Diameter | Volume | Lifting Force (↑), Kg | ||
| (mm) | (cm³) | -20 kPa | -60 kPa | -90 kPa |
| 15 | 0.12 | 0.35 | 0.36 | 0.50 |
2. Weight
| Part Number | Description | Weight (g) |
| FF15X-N | Mark-free suction cup, 15 mm, Nitrile (NBR) | 0.46 |
| FF15X-S | Mark-free suction cup, 15 mm, Silicone | 0.43 |
| FF15X-WS | Mark-free suction cup, 15 mm, White silicone | 0.44 |
| FF15X-WS(FDA) | Mark-free suction cup, 15 mm, White silicone (FDA) | 0.44 |
| FF15X-HS | Mark-free suction cup, 15 mm, High temp silicone | 0.47 |
| FF15X-CS | Mark-free suction cup, 15 mm, Conductive silicone | 0.45 |
| FF15X-U | Mark-free suction cup, 15 mm, Urethane | 0.47 |
| FF15X-A | Mark-free suction cup, 15 mm, Mark free | 0.49 |
| 350-007-0103 | Fitting, M5 male | 2.41 |
3. Material Specifications
| Material | Hardness Shore (°) | Color | Temperature (℃) |
| NBR | 60 | Black | -20 ~ 110 |
| Silicone | 55 | Red | -70 ~ 200 |
| White Silicone | 55 | Translucent White | -70 ~ 200 |
| White Silicone (FDA) | 55 | Translucent White | -70 ~ 200 |
| High Temp. Silicone | 50 | Blue | -70 ~ 280 |
| Conductive Material | 70 | Smoky Black | -45 ~ 90 |
| Urethane | 60 | Dark Green | 0 ~ 100 |
| Mark Free | 75 | Black | -10 ~ 100 |
4. Material Resistance
| Description | Wear Resistance | Oil | Weather/Ozone | Alcohol | Acid |
| NBR | Excellent | Excellent | Fair | Good | Fair |
| Silicone | Good | Poor | Excellent | Good | Poor |
| White Silicone | Good | Poor | Excellent | Good | Poor |
| High Temp. Silicone | Good | Poor | Excellent | Good | Poor |
| Conductive Silicone | Good | Poor | Excellent | Good | Poor |
| Urethane | Excellent | Excellent | Excellent | Fair | Poor |
| Mark Free | Good | Excellent | Excellent | Good | Excellent |

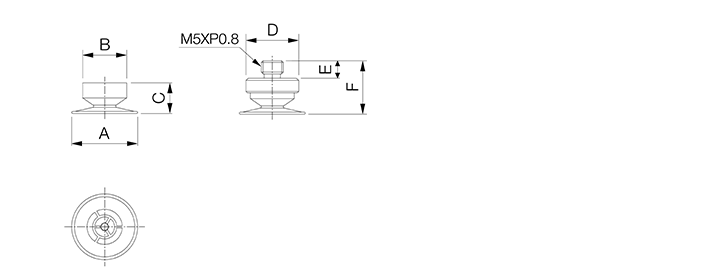

DIMENSIONS:
FF15X
|
|
| Unit: mm |
| Legend | A | B | C | D | E |
| Dimension | 15 | 10 | 7 | 4 | 12.2 |
ORDER NUMBER:
Spare Parts
| Part Number | Description |
| FF15X-N | Mark-free suction cup, 15 mm, Nitrile (NBR) |
| FF15X-S | Mark-free suction cup, 15 mm, Silicone |
| FF15X-WS | Mark-free suction cup, 15 mm, White silicone |
| FF15X-WS(FDA) | Mark-free suction cup, 15 mm, White silicone (FDA) |
| FF15X-HS | Mark-free suction cup, 15 mm, High temp silicone |
| FF15X-CS | Mark-free suction cup, 15 mm, Conductive silicone |
| FF15X-U | Mark-free suction cup, 15 mm, Urethane |
| FF15X-A | Mark-free suction cup, 15 mm, Mark free |
| 350-007-0103 | Fitting, M5 male |
