GIÁC HÚT CHÂN KHÔNG VMECA SERIES FF10
VMECA - FF10
VMECA - KOREA
Theo tiêu chuẩn nhà sản xuất
0985.288.164
HOTLINE TƯ VẤN : 0985.288.164

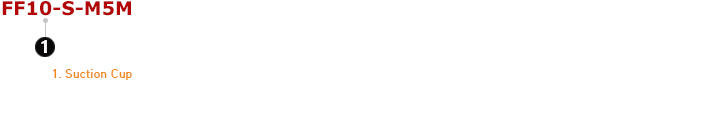

BUILD AND ORDER:
1. Suction Cup
| Part Number | Description |
| FF10-N-M5M | Mark-free suction cup, 10 mm, M5 male, Nitrile (NBR) |
| FF10-S-M5M | Mark-free suction cup, 10 mm, M5 male, Silicone |
| FF10-WS-M5M | Mark-free suction cup, 10 mm, M5 male, White silicone |
| FF10-WS-M5M(FDA) | Mark-free suction cup, 10 mm, M5 male, White silicone (FDA) |
| FF10-HS-M5M | Mark-free suction cup, 10 mm, M5 male, High Temp silicone |
| FF10-CS-M5M | Mark-free suction cup, 10 mm, M5 male, Conductive silicone |
| FF10-U-M5M | Mark-free suction cup, 10 mm, M5 male, Urethane |
| FF10-A-M5M | Mark-free suction cup, 10 mm, M5 male, Mark Free |
SPECIFICITIONS:
1. Recommended Lifting Maximum Force
| Diameter | Volume | Lifting Force (↑), Kg | ||
| (mm) | (cm³) | -20 kPa | -60 kPa | -90 kPa |
| 10 | 0.01 | 0.18 | 0.38 | 0.55 |
2. Weight
| Part Number | Description | Weight (g) |
| FF10-N-M5M | Mark-free suction cup, 10 mm, M5 male, Nitrile (NBR) | |
| FF10-S-M5M | Mark-free suction cup, 10 mm, M5 male, Silicone | |
| FF10-WS-M5M | Mark-free suction cup, 10 mm, M5 male, White silicone | |
| FF10-WS-M5M(FDA) | Mark-free suction cup, 10 mm, M5 male, White silicone (FDA) | |
| FF10-HS-M5M | Mark-free suction cup, 10 mm, M5 male, High Temp silicone | |
| FF10-CS-M5M | Mark-free suction cup, 10 mm, M5 male, Conductive silicone | |
| FF10-U-M5M | Mark-free suction cup, 10 mm, M5 male, Urethane | |
| FF10-A-M5M | Mark-free suction cup, 10 mm, M5 male, Mark Free |
3. Material Specifications
| Material | Hardness Shore (°) | Color | Temperature (℃) |
| NBR | 60 | Black | -20 ~ 110 |
| Silicone | 55 | Red | -70 ~ 200 |
| White Silicone | 55 | Translucent White | -70 ~ 200 |
| White Silicone (FDA) | 55 | Translucent White | -70 ~ 200 |
| High Temp. Silicone | 50 | Blue | -70 ~ 280 |
| Conductive Material | 70 | Smoky Black | -45 ~ 90 |
| Urethane | 60 | Dark Green | 0 ~ 100 |
| Mark Free | 75 | Black | -10 ~ 100 |
4. Material Resistance
| Description | Wear Resistance | Oil | Weather/Ozone | Alcohol | Acid |
| NBR | Excellent | Excellent | Fair | Good | Fair |
| Silicone | Good | Poor | Excellent | Good | Poor |
| White Silicone | Good | Poor | Excellent | Good | Poor |
| High Temp. Silicone | Good | Poor | Excellent | Good | Poor |
| Conductive Silicone | Good | Poor | Excellent | Good | Poor |
| Urethane | Excellent | Excellent | Excellent | Fair | Poor |
| Mark Free | Good | Excellent | Excellent | Good | Excellent |

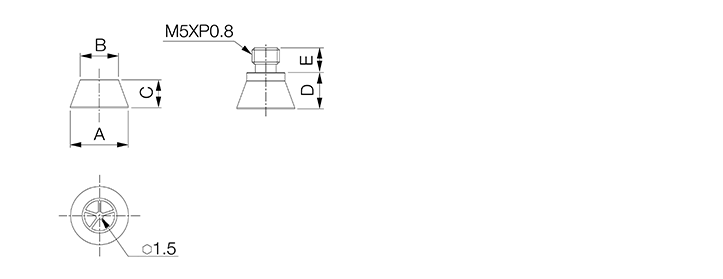

DIMENSIONS:
FF10
|
|
| Unit: mm |
| Legend | A | B | C | D | E |
| Dimension | 10 | 6.6 | 4.8 | 5.8 | 4.5 |
ORDER NUMBER:
Spare Parts
| Part Number | Description |
| FF10-N-M5M | Mark-free suction cup, 10 mm, M5 male, Nitrile (NBR) |
| FF10-S-M5M | Mark-free suction cup, 10 mm, M5 male, Silicone |
| FF10-WS-M5M | Mark-free suction cup, 10 mm, M5 male, White silicone |
| FF10-WS-M5M(FDA) | Mark-free suction cup, 10 mm, M5 male, White silicone (FDA) |
| FF10-HS-M5M | Mark-free suction cup, 10 mm, M5 male, High Temp silicone |
| FF10-CS-M5M | Mark-free suction cup, 10 mm, M5 male, Conductive silicone |
| FF10-U-M5M | Mark-free suction cup, 10 mm, M5 male, Urethane |
| FF10-A-M5M | Mark-free suction cup, 10 mm, M5 male, Mark Free |
