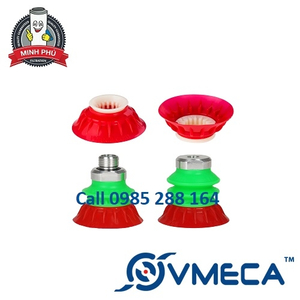

GIÁC HÚT CHÂN KHÔNG VMECA LOẠI X
VMECA - X
VMECA - KOREA
Theo tiêu chuẩn nhà sản xuất
0985.288.164
HOTLINE TƯ VẤN : 0985.288.164
► SƠ ĐỒ CHỌN MÃ GIÁC HÚT CHÂN KHÔNG VMECA LOẠI X:
1. Top-Bellows
| Symbol | Description |
| B1.5 | Top-Bellows, 1.5 folds |
| B2.5 | Top-Bellows, 2.5 folds |
| B4.0 | Top-Bellows, 1.5 folds + Middle Bellows, 2.5 folds |
| B5.0 | Top-Bellows, 1.5 folds + Middle Bellows, 3.5 folds |
| B6.0 | Top-Bellows, 2.5 folds + Middle Bellows, 3.5 folds |
2. Top-Bellows Size
| Symbol | Description |
| 20 | 20mm Diameter, only for X25, X30-type Suction Lips |
| 40 | 40mm Diameter, only for X45, X55-type Suction Lips |
| 60 | 60mm Diameter, only for X65, X75-type Suction Lips |
3. Suction Lip
| Symbol | Description |
| X25 | X-type Suction Lip, 25 mm Dia. |
| X30 | X-type Suction Lip, 30 mm Dia. |
| X45 | X-type Suction Lip, 45 mm Dia. |
| X55 | X-type Suction Lip, 55 mm Dia. |
| X65 | X-type Suction Lip, 65 mm Dia. |
| X75 | X-type Suction Lip, 75 mm Dia. |
4. Lip Material
| Symbol | Description |
| N6 | Nitrile (NBR), 60° Hardness |
| S3 | Silicone, 30° Hardness |
| S5 | Silicone, 50° Hardness |
| W3 | White Silicone, 30° Hardness |
| W5 | White Silicone, 50° Hardness |
| W3(FDA) | White Silicone, 30° Hardness (FDA) |
| W5(FDA) | White Silicone, 50° Hardness (FDA) |
| U6 | Urethane, 60° Hardness |
| PU | Polyurethane, 60° Hardness |
5. Stopper
| Symbol | Description |
| A | A-type |
| B | B-type |
| C | C-type |
| D | D-type |
6. Disc Filter
| Symbol | Description |
| Blank | No Vacuum Filter |
| F2 | Vacuum Filter, 200 mesh |
6. Fitting
| Symbol | Description |
| 18F | G1/8 Female |
| 14F | G1/4 Female |
| 38F | G3/8 Female: Only for 60 mm Top & Middle Bellows |
| 18M | G1/8 Male |
| 14M | G1/4 Male |
| 38M | G3/8 Male |
► Thông số và chất liệu giác hút:
1. Recommended Lifting Maximum Force
| Part Number | Volume | Lifting Force (↑), Kg | ||
| X-type lip | (cm³) | -20 kPa | -60 kPa | -90 kPa |
| B1.5/20-X25 | 2.9 | 0.80 | 1.79 | 2.44 |
| B1.5/20-X30 | 4.5 | 1.08 | 2.13 | 2.62 |
| B1.5/40-X45 | 17.8 | 2.14 | 3.57 | 5.00 |
| B1.5/40-X55 | 23.1 | 2.60 | 5.27 | 5.92 |
| B1.5/60-X65 | 43.0 | 4.80 | 11.50 | 15.90 |
| B1.5/60-X75 | 62.5 | 5.60 | 12.30 | 17.90 |
| B2.5/20-X25 | 5.0 | 0.80 | 1.79 | 2.44 |
| B2.5/20-X30 | 6.6 | 1.08 | 2.13 | 2.62 |
| B2.5/40-X45 | 25.2 | 2.14 | 3.57 | 5.00 |
| B2.5/40-X55 | 32.4 | 2.60 | 5.27 | 5.92 |
| B2.5/60-X65 | 63.8 | 4.80 | 11.50 | 15.90 |
| B2.5/60-X75 | 83.3 | 5.60 | 12.30 | 17.90 |
| B4.0/20-X25 | 4.8 | 0.80 | 1.79 | 2.44 |
| B4.0/20-X30 | 6.4 | 1.08 | 2.13 | 2.62 |
| B4.0/40-X45 | 31.0 | 2.14 | 3.57 | 5.00 |
| B4.0/40-X55 | 38.2 | 2.60 | 5.27 | 5.92 |
| B5.0/20-X25 | 5.9 | 0.80 | 1.79 | 2.44 |
| B5.0/20-X30 | 7.5 | 1.08 | 2.13 | 2.62 |
| B5.0/40-X45 | 37.8 | 2.14 | 3.57 | 5.00 |
| B5.0/40-X55 | 45.0 | 2.60 | 5.27 | 5.92 |
| B5.0/60-X65 | 104.8 | 4.80 | 11.50 | 15.90 |
| B5.0/60-X75 | 124.3 | 5.60 | 12.30 | 17.90 |
| B6.0/20-X25 | 8.0 | 0.80 | 1.79 | 2.44 |
| B6.0/20-X30 | 9.6 | 1.08 | 2.13 | 2.62 |
| B6.0/40-X45 | 45.1 | 2.14 | 3.57 | 5.00 |
| B6.0/40-X55 | 52.3 | 2.60 | 5.27 | 5.92 |
| B6.0/60-X65 | 126.6 | 4.80 | 11.50 | 15.90 |
| B6.0/60-X75 | 146.1 | 5.60 | 12.30 | 17.90 |
2. Material Specifications
| Material | Hardness Shore (°) | Color | Temperature (℃) |
| N6-NBR | 60 | Black | -20 ~ 110 |
| S3-Silicone | 30 | Translucent White | -70 ~ 200 |
| S5-Silicone | 50 | Red | -70 ~ 200 |
| W3-White Silicone | 30 | Translucent White | -70 ~ 200 |
| W5-White Silicone | 50 | Translucent White | -70 ~ 200 |
| W3(FDA)-FDA White Silicone | 30 | Translucent White | -70 ~ 200 |
| W5(FDA)-FDA White Silicone | 50 | Translucent White | -70 ~ 200 |
| U6-Urethane | 60 | Dark Green | 0 ~ 100 |
| PU-Polyurethane | 60 | Translucent Orange | 0 ~ 60 |
3. Material Resistance
| Description | Wear Resistance | Oil | Weather/Ozone | Alcohol | Acid |
| NBR | Excellent | Excellent | Fair | Good | Fair |
| Silicone | Good | Poor | Excellent | Good | Poor |
| White Silicone | Good | Poor | Excellent | Good | Poor |
| Urethane | Excellent | Excellent | Excellent | Fair | Poor |
| Polyurethane | Excellent | Excellent | Excellent | Fair | Fair |
