GIÁC HÚT CHÂN KHÔNG VMECA SERIES VBU35
VMECA - VBU35
VMECA - KOREA
Theo tiêu chuẩn nhà sản xuất
• Lực nâng (↑): 4,28 Kg @ -60 kPa
• Thể tích: 6,20 cm³
• Đường kính: 35,4 mm
• VBU đặc biệt tốt để sử dụng trên bề mặt cong và để tách các tấm vật liệu mỏng trong ngăn xếp. Cốc hút ống đôi rất tốt trong việc bù cho một mức độ khác biệt về mức độ và độ cong của phôi. Môi mỏng của cốc hút cho phép giữ tuyệt vời một sản phẩm có bề mặt không bằng phẳng.
Ứng dụng:
• Túi nhựa
• Veneer tấm
• Gói đông lạnh
• Hộp carton
0985.288.164
HOTLINE TƯ VẤN : 0985.288.164

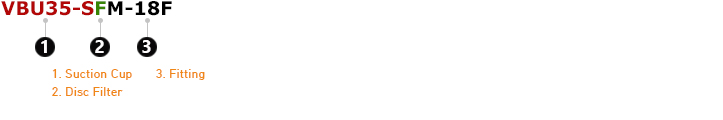

BUILD AND ORDER:
1. Suction Cup
| Symbol | Description |
| VBU35-N | Double-bellows universal suction cup, 35 mm, Nitrile |
| VBU35-S | Double-bellows universal suction cup, 35 mm, Silicone |
| VBU35-WS | Double-bellows universal suction cup, 35 mm, White silicone |
| VBU35-WS(FDA) | Double-bellows universal suction cup, 35 mm, White silicone (FDA) |
| VBU35-PU | Double-bellows universal suction cup, 35 mm, Polyurethane |
2. Disc Filter
| Symbol | Description |
| Blank | No disc filter |
| F | Disc filter |
3. Fitting
| Symbol | Description |
| Blank | No fitting |
| M-18F | Fitting, Mesh filter, G1/8 female |
| M-18M | Fitting, Mesh filter, G1/8 male |
| M-14M | Fitting, Mesh filter, G1/4 male |
| M-38M | Fitting, Mesh filter, G3/8 male |
| 18F | Fitting, G1/8 female |
| 18M | Fitting, G1/8 male |
| 14M | Fitting, G1/4 male |
| 38M | Fitting, G3/8 male |
| 18F-EV | Efficiency valve fitting, G1/8 female |
| 18M-EV | Efficiency valve fitting, G1/8 male |
| 14M-EV | Efficiency valve fitting, G1/4 male |
| 38M-EV | Efficiency valve fitting, G3/8 male |
SPECIFICITIONS:
1. Recommended Lifting Maximum Force
| Diameter | Volume | Lift Force (↑), Kg | ||
| (mm) | (cm³) | -20 kPa | -60 kPa | -90 kPa |
| 35.4 | 6.20 | 2.26 | 4.28 | 5.75 |
2. Weight
| Part Number | Description | Weight (g) |
| VBU35-N | Double-bellows universal suction cup, 35 mm, Nitrile | 4.48 |
| VBU35-S | Double-bellows universal suction cup, 35 mm, Silicone | 3.99 |
| VBU35-WS | Double-bellows universal suction cup, 35 mm, White silicone | 3.99 |
| VBU35-WS(FDA) | Double-bellows universal suction cup, 35 mm, White silicone (FDA) | 3.99 |
| VBU35-PU | Double-bellows universal suction cup, 35 mm, Polyurethane | 5.05 |
| VTFE-BU35 | Disc filter, Polyethylene | 0.36 |
| 350-000-4311 | Fitting, Mesh filter, G1/8 female | 5.73 |
| 350-000-4304 | Fitting, Mesh filter, G1/8 male | 5.04 |
| 350-000-3804 | Fitting, Mesh filter, G1/4 male | 5.92 |
| 350-000-3905 | Fitting, Mesh filter, G3/8 male | 9.56 |
| 350-000-3311 | Fitting, G1/8 female | 5.68 |
| 350-000-2304 | Fitting, G1/8 male | 4.93 |
| 350-000-3404 | Fitting, G1/4 male | 5.88 |
| 350-000-3505 | Fitting, G3/8 male | 9.16 |
| 350-010-3311 | Efficiency valve fitting, G1/8 female | 5.63 |
| 350-010-2304 | Efficiency valve fitting, G1/8 male | 5.08 |
| 350-010-3404 | Efficiency valve fitting, G1/4 male | 6.03 |
| 350-010-3505 | Efficiency valve fitting, G3/8 male | 9.72 |
3. Material Specifications
| Material | Hardness Shore (°) | Color | Temperature (℃) |
| NBR | 60 | Black | -20 ~ 110 |
| Silicone | 55 | Red | -70 ~ 200 |
| White Silicone | 55 | Translucent White | -70 ~ 200 |
| White Silicone (FDA) | 55 | Translucent White | -70 ~ 200 |
| Polyurethane | 60 | Translucent Orange | 0 ~ 60 |
4. Material Resistance
| Description | Wear Resistance | Oil | Weather/Ozone | Alcohol | Acid |
| NBR | Excellent | Excellent | Fair | Good | Fair |
| Silicone | Good | Poor | Excellent | Good | Poor |
| White Silicone | Good | Poor | Excellent | Good | Poor |
| Polyurethane | Excellent | Excellent | Excellent | Fair | Fair |

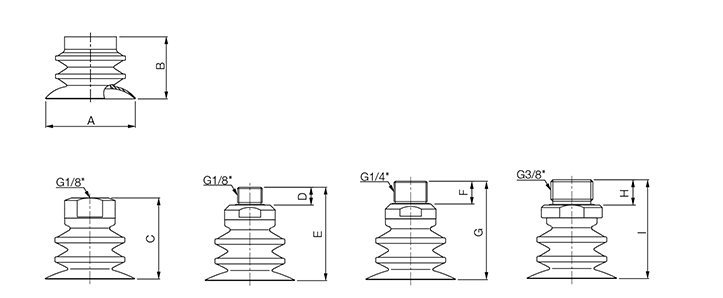

DIMENSIONS:
VBU35
|
| Unit: mm |
| Legend | A | B | C | D | E | F | G | H | I |
| Dimension | 35.4 | 24.5 | 32 | 7 | 36.8 | 10 | 39 | 7 | 36.8 |
ORDER NUMBER:
Order Numbers
| Part Number | Description |
| Mesh Filter | |
| VBU35-NM-18F | Double-bellows universal cup, 35 mm, Nitrile, G1/8 female, Mesh filter |
| VBU35-NM-18M | Double-bellows universal cup, 35 mm, Nitrile, G1/8 male, Mesh filter |
| VBU35-NM-14M | Double-bellows universal cup, 35 mm, Nitrile, G1/4 male, Mesh filter |
| VBU35-NM-38M | Double-bellows universal cup, 35 mm, Nitrile, G3/8 male, Mesh filter |
| VBU35-SM-18F | Double-bellows universal cup, 35 mm, Silicone, G1/8 female, Mesh filter |
| VBU35-SM-18M | Double-bellows universal cup, 35 mm, Silicone, G1/8 male, Mesh filter |
| VBU35-SM-14M | Double-bellows universal cup, 35 mm, Silicone, G1/4 male, Mesh filter |
| VBU35-SM-38M | Double-bellows universal cup, 35 mm, Silicone, G3/8 male, Mesh filter |
| VBU35-WSM-18F | Double-bellows universal cup, 35 mm, WS, G1/8 female, Mesh filter |
| VBU35-WSM-18M | Double-bellows universal cup, 35 mm, WS, G1/8 male, Mesh filter |
| VBU35-WSM-14M | Double-bellows universal cup, 35 mm, WS, G1/4 male, Mesh filter |
| VBU35-WSM-38M | Double-bellows universal cup, 35 mm, WS, G3/8 male, Mesh filter |
| VBU35-WS(FDA)M-18F | Double-bellows universal cup, 35 mm, WS(FDA), G1/8 female, Mesh filter |
| VBU35-WS(FDA)M-18M | Double-bellows universal cup, 35 mm, WS(FDA), G1/8 male, Mesh filter |
| VBU35-WS(FDA)M-14M | Double-bellows universal cup, 35 mm, WS(FDA), G1/4 male, Mesh filter |
| VBU35-WS(FDA)M-38M | Double-bellows universal cup, 35 mm, WS(FDA), G3/8 male, Mesh filter |
| VBU35-PUM-18F | Double-bellows universal cup, 35 mm, PU, G1/8 female, Mesh filter |
| VBU35-PUM-18M | Double-bellows universal cup, 35 mm, PU, G1/8 male, Mesh filter |
| VBU35-PUM-14M | Double-bellows universal cup, 35 mm, PU, G1/4 male, Mesh filter |
| VBU35-PUM-38M | Double-bellows universal cup, 35 mm, PU, G3/8 male, Mesh filter |
| No Mesh Filter | |
| VBU35-N-18F | Double-bellows universal cup, 35 mm, Nitrile, G1/8 female |
| VBU35-N-18M | Double-bellows universal cup, 35 mm, Nitrile, G1/8 male |
| VBU35-N-14M | Double-bellows universal cup, 35 mm, Nitrile, G1/4 male |
| VBU35-N-38M | Double-bellows universal cup, 35 mm, Nitrile, G3/8 male |
| VBU35-S-18F | Double-bellows universal cup, 35 mm, Silicone, G1/8 female |
| VBU35-S-18M | Double-bellows universal cup, 35 mm, Silicone, G1/8 male |
| VBU35-S-14M | Double-bellows universal cup, 35 mm, Silicone, G1/4 male |
| VBU35-S-38M | Double-bellows universal cup, 35 mm, Silicone, G3/8 male |
| VBU35-WS-18F | Double-bellows universal cup, 35 mm, WS, G1/8 female |
| VBU35-WS-18M | Double-bellows universal cup, 35 mm, WS, G1/8 male |
| VBU35-WS-14M | Double-bellows universal cup, 35 mm, WS, G1/4 male |
| VBU35-WS-38M | Double-bellows universal cup, 35 mm, WS, G3/8 male |
| VBU35-WS(FDA)-18F | Double-bellows universal cup, 35 mm, WS(FDA), G1/8 female |
| VBU35-WS(FDA)-18M | Double-bellows universal cup, 35 mm, WS(FDA), G1/8 male |
| VBU35-WS(FDA)-14M | Double-bellows universal cup, 35 mm, WS(FDA), G1/4 male |
| VBU35-WS(FDA)-38M | Double-bellows universal cup, 35 mm, WS(FDA), G3/8 male |
| VBU35-PU-18F | Double-bellows universal cup, 35 mm, PU, G1/8 female |
| VBU35-PU-18M | Double-bellows universal cup, 35 mm, PU, G1/8 male |
| VBU35-PU-14M | Double-bellows universal cup, 35 mm, PU, G1/4 male |
| VBU35-PU-38M | Double-bellows universal cup, 35 mm, PU, G3/8 male |
| Mesh & Disc Filter | |
| VBU35-NFM-18F | Double-bellows universal cup, 35 mm, Nitrile, G1/8 female, Mesh, disc filter |
| VBU35-NFM-18M | Double-bellows universal cup, 35 mm, Nitrile, G1/8 male, Mesh, disc filter |
| VBU35-NFM-14M | Double-bellows universal cup, 35 mm, Nitrile, G1/4 male, Mesh, disc filter |
| VBU35-NFM-38M | Double-bellows universal cup, 35 mm, Nitrile, G3/8 male, Mesh, disc filter |
| VBU35-SFM-18F | Double-bellows universal cup, 35 mm, Silicone, G1/8 female, Mesh, disc filter |
| VBU35-SFM-18M | Double-bellows universal cup, 35 mm, Silicone, G1/8 male, Mesh, disc filter |
| VBU35-SFM-14M | Double-bellows universal cup, 35 mm, Silicone, G1/4 male, Mesh, disc filter |
| VBU35-SFM-38M | Double-bellows universal cup, 35 mm, Silicone, G3/8 male, Mesh, disc filter |
| VBU35-WSFM-18F | Double-bellows universal cup, 35 mm, WS, G1/8 female, Mesh, disc filter |
| VBU35-WSFM-18M | Double-bellows universal cup, 35 mm, WS, G1/8 male, Mesh, disc filter |
| VBU35-WSFM-14M | Double-bellows universal cup, 35 mm, WS, G1/4 male, Mesh, disc filter |
| VBU35-WSFM-38M | Double-bellows universal cup, 35 mm, WS, G3/8 male, Mesh, disc filter |
| VBU35-WS(FDA)FM-18F | Double-bellows universal cup, 35 mm, WS(FDA), G1/8 female, Mesh, disc filter |
| VBU35-WS(FDA)FM-18M | Double-bellows universal cup, 35 mm, WS(FDA), G1/8 male, Mesh, disc filter |
| VBU35-WS(FDA)FM-14M | Double-bellows universal cup, 35 mm, WS(FDA), G1/4 male, Mesh, disc filter |
| VBU35-WS(FDA)FM-38M | Double-bellows universal cup, 35 mm, WS(FDA), G3/8 male, Mesh, disc filter |
| VBU35-PUFM-18F | Double-bellows universal cup, 35 mm, PU, G1/8 female, Mesh, disc filter |
| VBU35-PUFM-18M | Double-bellows universal cup, 35 mm, PU, G1/8 male, Mesh, disc filter |
| VBU35-PUFM-14M | Double-bellows universal cup, 35 mm, PU, G1/4 male, Mesh, disc filter |
| VBU35-PUFM-38M | Double-bellows universal cup, 35 mm, PU, G3/8 male, Mesh, disc filter |
| Disc Filter | |
| VBU35-NF-18F | Double-bellows universal cup, 35 mm, Nitrile, G1/8 female, Disc filter |
| VBU35-NF-18M | Double-bellows universal cup, 35 mm, Nitrile, G1/8 male, Disc filter |
| VBU35-NF-14M | Double-bellows universal cup, 35 mm, Nitrile, G1/4 male, Disc filter |
| VBU35-NF-38M | Double-bellows universal cup, 35 mm, Nitrile, G3/8 male, Disc filter |
| VBU35-SF-18F | Double-bellows universal cup, 35 mm, Silicone, G1/8 female, Disc filter |
| VBU35-SF-18M | Double-bellows universal cup, 35 mm, Silicone, G1/8 male, Disc filter |
| VBU35-SF-14M | Double-bellows universal cup, 35 mm, Silicone, G1/4 male, Disc filter |
| VBU35-SF-38M | Double-bellows universal cup, 35 mm, Silicone, G3/8 male, Disc filter |
| VBU35-WSF-18F | Double-bellows universal cup, 35 mm, WS, G1/8 female, Disc filter |
| VBU35-WSF-18M | Double-bellows universal cup, 35 mm, WS, G1/8 male, Disc filter |
| VBU35-WSF-14M | Double-bellows universal cup, 35 mm, WS, G1/4 male, Disc filter |
| VBU35-WSF-38M | Double-bellows universal cup, 35 mm, WS, G3/8 male, Disc filter |
| VBU35-WS(FDA)F-18F | Double-bellows universal cup, 35 mm, WS(FDA), G1/8 female, Disc filter |
| VBU35-WS(FDA)F-18M | Double-bellows universal cup, 35 mm, WS(FDA), G1/8 male, Disc filter |
| VBU35-WS(FDA)F-14M | Double-bellows universal cup, 35 mm, WS(FDA), G1/4 male, Disc filter |
| VBU35-WS(FDA)F-38M | Double-bellows universal cup, 35 mm, WS(FDA), G3/8 male, Disc filter |
| VBU35-PUF-18F | Double-bellows universal cup, 35 mm, PU, G1/8 female, Disc filter |
| VBU35-PUF-18M | Double-bellows universal cup, 35 mm, PU, G1/8 male, Disc filter |
| VBU35-PUF-14M | Double-bellows universal cup, 35 mm, PU, G1/4 male, Disc filter |
| VBU35-PUF-38M | Double-bellows universal cup, 35 mm, PU, G3/8 male, Disc filter |
| Efficiency Valve | |
| VBU35-N-18F-EV | Double-bellows universal cup, 35 mm, Nitrile, G1/8 female, Efficiency valve |
| VBU35-N-18M-EV | Double-bellows universal cup, 35 mm, Nitrile, G1/8 male, Efficiency valve |
| VBU35-N-14M-EV | Double-bellows universal cup, 35 mm, Nitrile, G1/4 male, Efficiency valve |
| VBU35-N-38M-EV | Double-bellows universal cup, 35 mm, Nitrile, G3/8 male, Efficiency valve |
| VBU35-S-18F-EV | Double-bellows universal cup, 35 mm, Silicone, G1/8 female, Eff valve |
| VBU35-S-18M-EV | Double-bellows universal cup, 35 mm, Silicone, G1/8 male, Eff valve |
| VBU35-S-14M-EV | Double-bellows universal cup, 35 mm, Silicone, G1/4 male, Eff valve |
| VBU35-S-38M-EV | Double-bellows universal cup, 35 mm, Silicone, G3/8 male, Eff valve |
| VBU35-WS-18F-EV | Double-bellows universal cup, 35 mm, WS, G1/8 female, Eff valve |
| VBU35-WS-18M-EV | Double-bellows universal cup, 35 mm, WS, G1/8 male, Eff valve |
| VBU35-WS-14M-EV | Double-bellows universal cup, 35 mm, WS, G1/4 male, Eff valve |
| VBU35-WS-38M-EV | Double-bellows universal cup, 35 mm, WS, G3/8 male, Eff valve |
| VBU35-WS(FDA)-18F-EV | Double-bellows universal cup, 35 mm, WS(FDA), G1/8 female, Eff valve |
| VBU35-WS(FDA)-18M-EV | Double-bellows universal cup, 35 mm, WS(FDA), G1/8 male, Eff valve |
| VBU35-WS(FDA)-14M-EV | Double-bellows universal cup, 35 mm, WS(FDA), G1/4 male, Eff valve |
| VBU35-WS(FDA)-38M-EV | Double-bellows universal cup, 35 mm, WS(FDA), G3/8 male, Eff valve |
| VBU35-PU-18F-EV | Double-bellows universal cup, 35 mm, PU, G1/8 female, Eff valve |
| VBU35-PU-18M-EV | Double-bellows universal cup, 35 mm, PU, G1/8 male, Eff valve |
| VBU35-PU-14M-EV | Double-bellows universal cup, 35 mm, PU, G1/4 male, Eff valve |
| VBU35-PU-38M-EV | Double-bellows universal cup, 35 mm, PU, G3/8 male, Eff valve |
| Disc Filter & Efficiency Valve | |
| VBU35-NF-18F-EV | Double-bellows universal cup, 35 mm, Nitrile, G1/8 female, Eff valve, Disc filter |
| VBU35-NF-18M-EV | Double-bellows universal cup, 35 mm, Nitrile, G1/8 male, Eff valve, Disc filter |
| VBU35-NF-14M-EV | Double-bellows universal cup, 35 mm, Nitrile, G1/4 male, Eff valve, Disc filter |
| VBU35-NF-38M-EV | Double-bellows universal cup, 35 mm, Nitrile, G3/8 male, Eff valve, Disc filter |
| VBU35-SF-18F-EV | Double-bellows universal cup, 35 mm, Silicone, G1/8 female, Eff valve, Disc filter |
| VBU35-SF-18M-EV | Double-bellows universal cup, 35 mm, Silicone, G1/8 male, Eff valve, Disc filter |
| VBU35-SF-14M-EV | Double-bellows universal cup, 35 mm, Silicone, G1/4 male, Eff valve, Disc filter |
| VBU35-SF-38M-EV | Double-bellows universal cup, 35 mm, Silicone, G3/8 male, Eff valve, Disc filter |
| VBU35-WSF-18F-EV | Double-bellows universal cup, 35 mm, WS, G1/8 female, Eff valve, Disc filter |
| VBU35-WSF-18M-EV | Double-bellows universal cup, 35 mm, WS, G1/8 male, Eff valve, Disc filter |
| VBU35-WSF-14M-EV | Double-bellows universal cup, 35 mm, WS, G1/4 male, Eff valve, Disc filter |
| VBU35-WSF-38M-EV | Double-bellows universal cup, 35 mm, WS, G3/8 male, Eff valve, Disc filter |
| VBU35-WS(FDA)F-18F-EV | Double-bellows universal cup, 35 mm, WS(FDA), G1/8 female, Eff valve, Disc filter |
| VBU35-WS(FDA)F-18M-EV | Double-bellows universal cup, 35 mm, WS(FDA), G1/8 male, Eff valve, Disc filter |
| VBU35-WS(FDA)F-14M-EV | Double-bellows universal cup, 35 mm, WS(FDA), G1/4 male, Eff valve, Disc filter |
| VBU35-WS(FDA)F-38M-EV | Double-bellows universal cup, 35 mm, WS(FDA), G3/8 male, Eff valve, Disc filter |
| VBU35-PUF-18F-EV | Double-bellows universal cup, 35 mm, PU, G1/8 female, Eff valve, Disc filter |
| VBU35-PUF-18M-EV | Double-bellows universal cup, 35 mm, PU, G1/8 male, Eff valve, Disc filter |
| VBU35-PUF-14M-EV | Double-bellows universal cup, 35 mm, PU, G1/4 male, Eff valve, Disc filter |
| VBU35-PUF-38M-EV | Double-bellows universal cup, 35 mm, PU, G3/8 male, Eff valve, Disc filter |
| Rubber Part | |
| VBU35-N | Double-bellows universal suction cup, 35 mm, Nitrile |
| VBU35-S | Double-bellows universal suction cup, 35 mm, Silicone |
| VBU35-WS | Double-bellows universal suction cup, 35 mm, White silicone |
| VBU35-WS(FDA) | Double-bellows universal suction cup, 35 mm, White silicone (FDA) |
| VBU35-PU | Double-bellows universal suction cup, 35 mm, Polyurethane |
| Disc Filter | |
| VTFE-BU35 | Disc filter, Polyethylene |
| Fitting | |
| 350-000-4311 | Fitting, Mesh filter, G1/8 female |
| 350-000-4304 | Fitting, Mesh filter, G1/8 male |
| 350-000-3804 | Fitting, Mesh filter, G1/4 male |
| 350-000-3905 | Fitting, Mesh filter, G3/8 male |
| 350-000-3311 | Fitting, G1/8 female |
| 350-000-2304 | Fitting, G1/8 male |
| 350-000-3404 | Fitting, G1/4 male |
| 350-000-3505 | Fitting, G3/8 male |
| 350-010-3311 | Efficiency valve fitting, G1/8 female |
| 350-010-2304 | Efficiency valve fitting, G1/8 male |
| 350-010-3404 | Efficiency valve fitting, G1/4 male |
| 350-010-3505 | Efficiency valve fitting, G3/8 male |
Công ty rất hân hạnh được phục vụ nhu cầu của quý khách, vui lòng liên hệ tại đây:
CÔNG TY TNHH KỸ THUẬT VÀ DỊCH VỤ MINH PHÚ
Địa chỉ: Số 244/44, Đường Dương Đình Hội, Phường Tăng Nhơn Phú B, Quận 9, Thành phố Hồ Chí Minh, Việt Nam
Hotline, zalo, skype: 0985.288.164 ( Mr.Hải )
Email: hoanghai@minhphuco.vn
Website: www.thietbinanghachankhong.vn
Sản phẩm cùng loại
GIÁC HÚT CHÂN KHÔNG VMECA SERIES VBU55
0985.288.164
270 lượt
GIÁC HÚT CHÂN KHÔNG VMECA SERIES VBU45
0985.288.164
190 lượt
