GIÁC HÚT CHÂN KHÔNG VMECA SERIES VB30M
VMECA - VB30M
VMECA - KOREA
Theo tiêu chuẩn nhà sản xuất
0985.288.164
HOTLINE TƯ VẤN : 0985.288.164

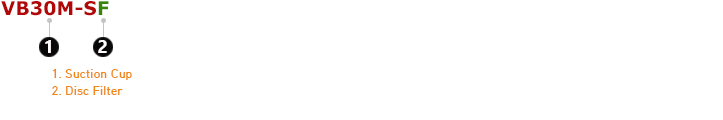

BUILD AND ORDER:
1. Suction Cup
| Symbol | Description |
| VB30M-N | Single-bellows cup, w/Long neck, 30 mm, Nitrile |
| VB30M-S | Single-bellows cup, w/Long neck, 30 mm, Silicone |
| VB30M-WS | Single-bellows cup, w/Long neck, 30 mm, White silicone |
| VB30M-WS(FDA) | Single-bellows cup, w/Long neck, 30 mm, White silicone (FDA) |
| VB30M-HS | Single-bellows cup, w/Long neck, 30 mm, High-temp silicone |
| VB30M-CS | Single-bellows cup, w/Long neck, 30 mm, Conductive |
| VB30M-U | Single-bellows cup, w/Long neck, 30 mm, Urethane |
| VB30M-A | Single-bellows cup, w/Long neck, 30 mm, Mark free |
| VB30M-PU | Single-bellows cup, w/Long neck, 30 mm, Polyurethane |
2. Disc Filter
| Code | Description |
| Blank | No disc filter |
| F | Disc filter |
SPECIFICITIONS:
1. Recommended Lifting Maximum Force
| Diameter | Volume | Lifting Force (↑), Kg | ||
| (mm) | (cm³) | -20 kPa | -60 kPa | -90 kPa |
| 34 | 10.00 | 1.5 | 2.60 | 3.90 |
2. Weight
| Part Number | Description | Weight (g) |
| VB30M-N | Single-bellows cup, w/Long neck, 30 mm, Nitrile | 9.39 |
| VB30M-S | Single-bellows cup, w/Long neck, 30 mm, Silicone | 8.49 |
| VB30M-WS | Single-bellows cup, w/Long neck, 30 mm, White silicone | 8.69 |
| VB30M-WS(FDA) | Single-bellows cup, w/Long neck, 30 mm, White silicone (FDA) | 8.69 |
| VB30M-HS | Single-bellows cup, w/Long neck, 30 mm, High-temp Silicone | 8.74 |
| VB30M-CS | Single-bellows cup, w/Long neck, 30 mm, Conductive | 8.75 |
| VB30M-U | Single-bellows cup, w/Long neck, 30 mm, Urethane | 9.29 |
| VB30M-A | Single-bellows cup, w/Long neck, 30 mm, Mark free | 9.08 |
| VB30M-PU | Single-bellows cup, w/Long neck, 30 mm, Polyurethane | 8.81 |
| VTFE-B30 | Disc filter, Polyethylene | 0.63 |
3. Material Specifications
| Material | Hardness Shore (°) | Color | Temperature (℃) |
| NBR | 60 | Black | -20 ~ 110 |
| Silicone | 55 | Red | -70 ~ 200 |
| White Silicone | 55 | Translucent White | -70 ~ 200 |
| White Silicone (FDA) | 55 | Translucent White | -70 ~ 200 |
| High Temp. Silicone | 50 | Blue | -70 ~ 280 |
| Conductive Material | 70 | Smoky Black | -45 ~ 90 |
| Urethane | 60 | Dark Green | 0 ~ 100 |
| Mark Free | 75 | Black | -10 ~ 100 |
| Polyurethane | 60 | Translucent Orange | 0 ~ 60 |
4. Material Resistance
| Description | Wear Resistance | Oil | Weather/Ozone | Alcohol | Acid |
| NBR | Excellent | Excellent | Fair | Good | Fair |
| Silicone | Good | Poor | Excellent | Good | Poor |
| White Silicone | Good | Poor | Excellent | Good | Poor |
| High Temp. Silicone | Good | Poor | Excellent | Good | Poor |
| Conductive Silicone | Good | Poor | Excellent | Good | Poor |
| Urethane | Excellent | Excellent | Excellent | Fair | Poor |
| Mark Free | Good | Excellent | Excellent | Good | Excellent |
| Polyurethane | Excellent | Excellent | Excellent | Fair | Fair |
DIMENSIONS:
VB30M
|
|
| Unit: mm |
| Legend | A | B | C | D |
| Dimension | 34 | 36 | 14 | 41 |
ORDER NUMBER:
|
Spare Parts
|
