GIÁC HÚT CHÂN KHÔNG VMECA SERIES LF150
VMECA - LF150
VMECA - KOREA
Theo tiêu chuẩn nhà sản xuất
0985.288.164
HOTLINE TƯ VẤN : 0985.288.164

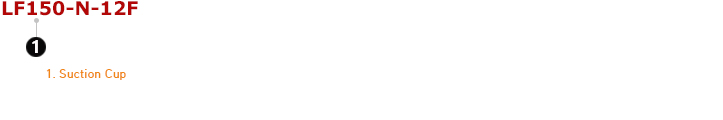

BUILD AND ORDER:
1. Suction Cup
| Part Number | Description |
| LF150-N-12F | Flat dual-lip suction cup, 150 mm, G1/2 female, Nitrile (NBR) |
| LF150-S-12F | Flat dual-lip suction cup, 150 mm, G1/2 female, Silicone |
| LF150-WS-12F | Flat dual-lip suction cup, 150 mm, G1/2 female, White silicone |
| LF150-WS-12F(FDA) | Flat dual-lip suction cup, 150 mm, G1/2 female, White silicone (FDA) |
| LF150-HS-12F | Flat dual-lip suction cup, 150 mm, G1/2 female, High-temp silicone |
| LF150-CS-12F | Flat dual-lip suction cup, 150 mm, G1/2 female, Conductive silicone |
| LF150-U-12F | Flat dual-lip suction cup, 150 mm, G1/2 female, Urethane |
| LF150-A-12F | Flat dual-lip suction cup, 150 mm, G1/2 female, Mark free |
SPECIFICITIONS:
1. Recommended Lifting Maximum Force
| Diameter | Volume | Lift Force (↑), Kg | Lift Force (→), Kg | ||||
| (mm) | (cm³) | -20 kPa | -60 kPa | -90 kPa | -20 kPa | -60 kPa | -90 kPa |
| 153 | 145.0 | 53.0 | 79.0 | 115.0 | 39.0 | 43.0 | 68.0 |
2. Weight
| Part Number | Description | Weight (g) |
| LF150-N-12F | Flat dual-lip suction cup, 150 mm, G1/2 female, Nitrile (NBR) | 347.0 |
| LF150-S-12F | Flat dual-lip suction cup, 150 mm, G1/2 female, Silicone | 330.1 |
| LF150-WS-12F | Flat dual-lip suction cup, 150 mm, G1/2 female, White silicone | 337.1 |
| LF150-WS-12F(FDA) | Flat dual-lip suction cup, 150 mm, G1/2 female, White silicone (FDA) | 337.1 |
| LF150-HS-12F | Flat dual-lip suction cup, 150 mm, G1/2 female, High-temp silicone | 343.6 |
| LF150-CS-12F | Flat dual-lip suction cup, 150 mm, G1/2 female, Conductive silicone | 358.8 |
| LF150-U-12F | Flat dual-lip suction cup, 150 mm, G1/2 female, Urethane | 359.5 |
| LF150-A-12F | Flat dual-lip suction cup, 150 mm, G1/2 female, Mark free | 374.9 |
3. Material Specifications
| Material | Hardness Shore (°) | Color | Temperature (℃) |
| NBR | 60 | Black | -20 ~ 110 |
| Silicone | 55 | Red | -70 ~ 200 |
| White Silicone | 55 | Translucent White | -70 ~ 200 |
| White Silicone (FDA) | 55 | Translucent White | -70 ~ 200 |
| High Temp. Silicone | 50 | Blue | -70 ~ 280 |
| Conductive Material | 70 | Smoky Black | -45 ~ 90 |
| Urethane | 60 | Dark Green | 0 ~ 100 |
| Mark Free | 75 | Black | -10 ~ 100 |
4. Material Resistance
| Description | Wear Resistance | Oil | Weather/Ozone | Alcohol | Acid |
| NBR | Excellent | Excellent | Fair | Good | Fair |
| Silicone | Good | Poor | Excellent | Good | Poor |
| White Silicone | Good | Poor | Excellent | Good | Poor |
| High Temp. Silicone | Good | Poor | Excellent | Good | Poor |
| Conductive Silicone | Good | Poor | Excellent | Good | Poor |
| Urethane | Excellent | Excellent | Excellent | Fair | Poor |
| Mark Free | Good | Excellent | Excellent | Good | Excellent |

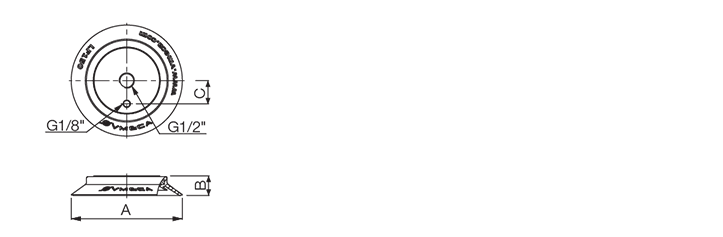

DIMENSIONS:
LF150
|
| Unit: mm |
| Legend | A | B | C |
| Dimension | 153 | 27 | 32 |
ORDER NUMBER:
Order Numbers
| Part Number | Description |
| LF150-N-12F | Flat dual-lip suction cup, 150 mm, G1/2 female, Nitrile (NBR) |
| LF150-S-12F | Flat dual-lip suction cup, 150 mm, G1/2 female, Silicone |
| LF150-WS-12F | Flat dual-lip suction cup, 150 mm, G1/2 female, White silicone |
| LF150-WS-12F(FDA) | Flat dual-lip suction cup, 150 mm, G1/2 female, White silicone (FDA) |
| LF150-HS-12F | Flat dual-lip suction cup, 150 mm, G1/2 female, High-temp silicone |
| LF150-CS-12F | Flat dual-lip suction cup, 150 mm, G1/2 female, Conductive silicone |
| LF150-U-12F | Flat dual-lip suction cup, 150 mm, G1/2 female, Urethane |
| LF150-A-12F | Flat dual-lip suction cup, 150 mm, G1/2 female, Mark free |
