BƠM CHÂN KHÔNG VMECA SERIES VDL303S
VDL303S
VMECA - KOREA
Theo tiêu chuẩn nhà sản xuất
• Mức chân không tối đa: -75 kPa
• Lưu lượng chân không mở: 362 Nl / phút
• Tiêu thụ không khí: 104 Nl / phút @ 6 bar
0985.288.164
HOTLINE TƯ VẤN : 0985.288.164

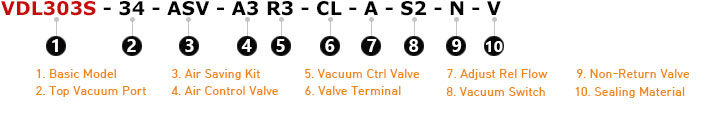

1. Basic Model
| Symbol | Description |
| VDL303S | VDL303 vacuum pump, “L” type 3-stage cartridge, Twofold silencer |
2. Vacuum Port
| Symbol | Description |
| 34 | Vacuum port G3/4 |
| 12 | Vacuum port G1/2 |
3. Air Saving Kit
| Symbol | Description |
| Blank | No air saving kit |
| ASV | Air saving kit integrated with air control valve |
| AS | Air saving kit without air control valve |
4. Air Control Valve
| Symbol | Description |
| Blank | No air control valve |
| A1 | Air control valve, AC 110V |
| A2 | Air control valve, AC 220V |
| A3 | Air control valve, DC 24V |
| D1 | Double air control valve, AC 110V |
| D2 | Double air control valve, AC 220V |
| D3 | Double air control valve, DC 24V |
5. Vacuum Release Control Valve
| Symbol | Description |
| Blank | No vacuum release control valve |
| R1 | Vacuum release control valve, AC 110V |
| R2 | Vacuum release control valve, AC 220V |
| R3 | Vacuum release control valve, DC 24V |
6. Valve Solenoid Terminal
| Symbol | Description |
| Blank | No air & vacuum release control valves |
| DN | Solenoid terminal, DIN type, No lead wire |
| DL | Solenoid terminal, DIN type, No lead wire, Lamp |
| CL | Solenoid terminal, Connector type, 30 cm lead wire |
| ☛ Option “CL” is only available with DC24V. | |
| 2B | Solenoid terminal, DIN, 2-in-1 BUS cable |
| 3B | Solenoid terminal, DIN, 2-in-1 BUS cable |
| 4B | Solenoid terminal, DIN, 2-in-1 BUS cable |
| ☛ Option “2B” and “3B” are not available with a double solenoid valve. | |
| ☛ Option “3B” and “4B” are available only with DC24V and S2 or S2P vacuum switch. |
7. Adjustment of Vacuum Release Flow
| Symbol | Description |
| Blank | No adjustment of vacuum release flow |
| A | Adjustment of vacuum release flow |
8. Vacuum Switch
| Symbol | Description |
| Blank | No vacuum switch |
| S2 | Digital vacuum switch, No analog supply, M8-4-pins, NPN |
| S2P | Digital vacuum switch, No analog supply, M8-4-pins, PNP |
| SG2 | Digital vacuum switch, No analog supply, Grommet, NPN |
| SG2P | Digital vacuum switch, No analog supply, Grommet, PNP |
| SG3 | Digital vacuum switch, Analog supply, Grommet, NPN |
| SG3P | Digital vacuum switch, Analog supply, Grommet, PNP |
9. Non-Return Valve
| Symbol | Description |
| Blank | No non-return valve |
| N | Non-return valve |
| ☛ With option “Air saving kit”, Non-return valve is included as a standard. |
10. Sealing Material
| Symbol | Description |
| Blank | NBR sealing material |
| V | Viton sealing material |
| E | EPDM sealing material |
| Max Vacuum Level | -75 kPa |
| Open Vacuum Flow | 362 Nl/min |
| Feed Pressure | 4 ~ 6 bar (Max 7 bar) |
| Air Consumption | 104 Nl/min @ 6 bar |
| Temperature | -20 ~ 80 ℃ |
| Weight – Basic pump | 445 g |
| VDL303: Basic Pump |
| Unit: mm |
| No | Description |
| 1 | Air Supply Port, G1/8″ |
| 2 | Vacuum Port, G3/4″ or G1/2″ |
| 3 | Exhaust |
| VDL303: with Single Solenoid Valve for Compressed Air |
| Unit: mm |
| No | Description |
| 1 | Air Supply Port, G1/8″ |
| 1-1 | Vacuum Release Port, G1/8″ |
| 2 | Vacuum Port, G3/4″ or G1/2″ |
| 3 | Exhaust |
| 4 | Air Control Valve |
| 5 | Vacuum Switch |
| VDL303: with Double Solenoid Valve for Compressed Air |
| Unit: mm |
| No | Description |
| 1 | Air Supply Port, G1/8″ |
| 1-1 | Vacuum Release Port, G1/8″ |
| 2 | Vacuum Port, G3/4″ or G1/2″ |
| 3 | Exhaust |
| 4 | Air Control Valve |
| 5 | Vacuum Switch |
1. Vacuum Pump
| Part Number | Description |
| VDL303S-34 | VDL303 vacuum pump, “L” type 3-stage cartridge, Twofold silencer, G3/4 vacuum port |
| VDL303S-12 | VDL303 vacuum pump, “L” type 3-stage cartridge, Twofold silencer, G1/2 vacuum port |
2. Air Control Valve
| Part Number | Description |
| MS18-3-1 | 2/2 way solenoid, G1/8″ inlet, DC24V, DIN type |
| MS18-3-2 | 2/2 way solenoid, G1/8″ inlet, DC24V, DIN type, Lamp |
| MS18-2-1 | 2/2 way solenoid, G1/8″ inlet, AC220V, DIN type |
| MS18-2-2 | 2/2 way solenoid, G1/8″ inlet, AC220V, DIN type, Lamp |
| MS18-1-1 | 2/2 way solenoid, G1/8″ inlet, AC110V, DIN type, No LW |
| MS18-1-2 | 2/2 way solenoid, G1/8″ inlet, AC110V, DIN type, Lamp |
| VMS14D-3-1 | 2/2-way double solenoid, G3/8 In, G1/4 Out, DC24V, DIN type |
| VMS14D-3-2 | 2/2-way double solenoid, G3/8 In, G1/4 Out, DC24V, DIN type, Lamp |
| VMS14D-2-1 | 2/2-way double solenoid, G3/8 In, G1/4 Out, AC220V, DIN type |
| VMS14D-2-2 | 2/2-way double solenoid, G3/8 In, G1/4 Out, AC220V, DIN type, Lamp |
| VMS14D-1-1 | 2/2-way double solenoid, G3/8 In, G1/4 Out, AC110V, DIN type |
| VMS14D-1-2 | 2/2-way double solenoid, G3/8 In, G1/4 Out, AC110V, DIN type, Lamp |
3. Vacuum Switch
| Part Number | Description |
| VP20V-01-F1-C | Digital switch, No analog supply, M8-4-pin connector, NPN (S2) |
| VP20V-03-F1-C | Digital switch, No analog supply, M8-4-pin connector, PNP (S2P) |
| VP20V-01-F1 | Digital switch, No analog supply, 2 m lead wire, NPN (SG2) |
| VP20V-03-F1 | Digital switch, No analog supply, 2 m lead wire, PNP (SG2P) |
| VP20V-01-F1-A | Digital switch, Analog supply, 2 m lead wire, NPN (SG3) |
| VP20V-03-F1-A | Digital switch, Analog supply, 2 m lead wire, PNP (SG3P) |
4. Vacuum Cartridge
| Part Number | Description |
| VCL303 | Midi vacuum cartridge, “L” type 3-stage |
| VCL303S | Midi vacuum cartridge, “L” type 3-stage, Twofold silencer |
| VCL303-N | Midi vacuum cartridge, “L” type 3-stage, Non-return valve ☛ Pump with air saving kit |
| VCL303S-N | Midi vacuum cartridge, “L” type 3-stage, Twofold silencer, Non-return valve ☛ Pump w/Air saving kit |
5. Other
| Part Number | Description |
| VTTS-M25 | Twofold silencer |
