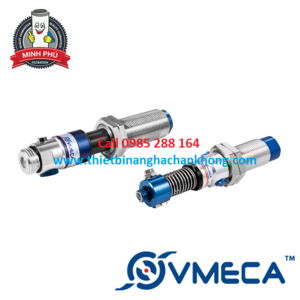

BƠM CHÂN KHÔNG VMECA SERIES VCS202
VCS202
VMECA - KOREA
Theo tiêu chuẩn nhà sản xuất
0985.288.164
HOTLINE TƯ VẤN : 0985.288.164

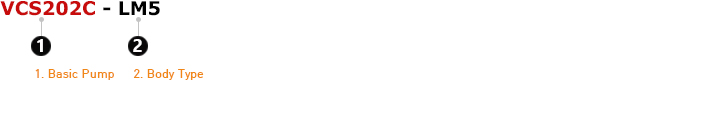

1. Basic Model
| Symbol | Description |
| VCS202C | VCS vacuum pump, 2-stage mini cartridge, Release check valve |
| VCS202 | VCS vacuum pump, 2-stage mini cartridge, No release check valve |
2. Body Type
| Symbol | Description |
| 18M20 | G1/8 male vacuum port, 20 mm level compensator |
| 38M20 | G3/8 male vacuum port, 20 mm level compensator |
| 12M20 | G1/2 male vacuum port, 20 mm level compensator |
| L18M | G1/8 male vacuum port |
| L18M10 | G1/8 male vacuum port, 10 mm level compensator |
| L38F | G3/8 female vacuum port ☛ Only available with VCS202. |
| Max Vacuum Level | -90 kPa |
| Open Vacuum Flow | 40 Nl/min |
| Feed Pressure | 1.7 ~ 4 bar (Max 7 bar) |
| Air Consumption | 32 Nl/min @ 4 bar |
| Temperature | -20 ~ 80 ℃ |
| Weight (VCS202-18M20) | 228 g |
| VCS202 series: |
| Unit: mm |
| VCS202-18M20 VCS202C-18M20 |
VCS202-38M20 VCS202C-38M20 |
VCS202-12M20 VCS202C-12M20 |
 |
 |
 |
| 1: G1/8 Female 2: G1/8 Male 2r: M5 Female |
1: G1/8 Female 2: G3/8 Male 2r: M5 Female |
1: M5 Female 2: G1/2 Female 2r: M5 Female |
| VCS202-L18M10 VCS202C-L18M10 |
VCS202-L18M VCS202C-L18M |
VCS202-L38F |
 |
 |
 |
| 1: G1/8 Female 2: G1/8 Male 2r: M5 Female |
1: G1/8 Female 2: G1/8 Male 2r: M5 Female |
1: G1/8 Female 2: G3/8 Female 3: M5 Female |
| No | Description |
| 1 | Compressed-Air Port |
| 2 | Vacuum Port |
| 2r | Alternative Vacuum Port |
| 3 | Exhaust Port |
| S | Stroke |
Basic VCS series Pumps and Spare Parts
| Part Number | Description | Weight |
| VCS202C-18M20 | VCS pump, 2-stg mini cart, Rel. check valve, G1/8 male port, 20 mm stroke | 229 g |
| VCS202-18M20 | VCS pump, 2-stg mini cart, G1/8 male port, Level comp. | 228 g |
| VCS202C-38M20 | VCS pump, 2-stg mini cart, Rel. check valve, G3/8 male port, 20 mm stroke | 229 g |
| VCS202-38M20 | VCS pump, 2-stg mini cart, G3/8 male port, Level comp. | 229 g |
| VCS202C-12M20 | VCS pump, 2-stg mini cart, Rel. check valve, G1/2 male port, 20 mm stroke | 233 g |
| VCS202-12M20 | VCS pump, 2-stg mini cart, G1/2 male port, Level comp. | 233 g |
| VCS202C-L18M10 | VCS pump, 2-stg mini cart, Rel. check valve, G1/8 male port, 10 mm stroke | 130 g |
| VCS202-L18M10 | VCS pump, 2-stg mini cart, G1/8 male port, 10 mm stroke | 131 g |
| VCS202-L38F | VCS pump, 2-stg mini cart, G3/8 female port | 92 g |
| VC202 | Mini vacuum cartridge, 2-stage | |
