BƠM CHÂN KHÔNG VMECA SERIES ML3122

Mã sản phẩm : ML3122

Xuất xứ : VMECA - KOREA

Bảo hành : Theo tiêu chuẩn nhà sản xuất

• Mức chân không tối đa: -75 kPa • Lưu lượng chân không mở: 400 Nl / phút • Tiêu thụ không khí: 208 Nl / phút @ 6 bar

Giá sản phẩm : 0985.288.164

HOTLINE TƯ VẤN : 0985.288.164

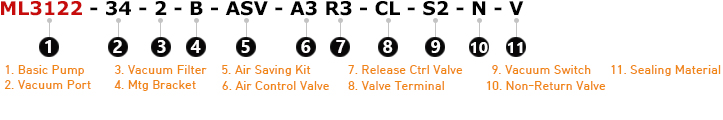

1. Basic Model

Symbol	Description
ML3122	Magic Pump, “L” type 2-stage, 2-vacuum cartridge

2. Vacuum Port

3. Filter Element

4. Mounting Bracket

Symbol	Description
Blank	No mounting bracket
B	2-point L-type mounting bracket

5. Air Saving Kit

Symbol	Description
Blank	No air saving kit
ASV	Air saving kit integrated with air control valve
AS	Air saving kit without air control valve

6. Air Control Valve

Symbol	Description
Blank	No air control valve
A1	Air control valve, AC 110V
A2	Air control valve, AC 220V
A3	Air control valve, DC 24V
D1	Double solenoid, Air control valve, AC 110V
D2	Double solenoid, Air control valve, AC 220V
D3	Double solenoid, Air control valve, DC 24V
	☛ Double solenoid valve is available only with DN or DL valve terminal option.

7. Vacuum Release Valve

Symbol	Description
Blank	No vacuum release control valve
R1	Vacuum release control valve, AC 110V
R2	Vacuum release control valve, AC 220V
R3	Vacuum release control valve, DC 24V

8. Control Valve Terminal

Symbol	Description
Blank	No air & vacuum release control valves
DN	Solenoid terminal, DIN type, No lead wire
DL	Solenoid terminal, DIN type, No lead wire, Lamp
CL	Solenoid terminal, Connector type, 30 cm lead wire
	☛ Option “CL” is available only with DC 24V.
2B	Solenoid terminal, DIN, 2-in-1 BUS cable
3B	Solenoid terminal, DIN, 2-in-1 BUS cable
4B	Solenoid terminal, DIN, 2-in-1 BUS cable
	☛ Option “2B” and “3B” are not available with a Double solenoid valve.
	☛ Option “3B” and “4B” are available only with DC 24V and S2 or S2P vacuum switch.

9. Vacuum Switch

Symbol	Description
Blank	No vacuum switch
S2	Digital switch, No analog supply, M8-4-pin, NPN
S2P	Digital switch, No analog supply, M8-4-pin, PNP
SG2	Digital switch, No analog supply, 2 m lead wire, NPN
SG2P	Digital switch, No analog supply, 2 m lead wire, PNP
SG3	Digital switch, Analog supply, 2 m lead wire, NPN
SG3P	Digital switch, Analog supply, 2 m lead wire, PNP

10. Non-Return Valve

Symbol	Description
Blank	No non-return valve
N	Non-return valve
	☛ The pump with air saving kit option does not require a non-return valve option.

11. Sealing Material

ML3122: Basic Pump

Unit: mm

ML3122: with Accessories

Unit: mm

1. Basic Vacuum Pump

Part Number	Description
ML3122-34-2	Magic Pump, “L” type 2-stage, 2-vacuum cartridge, G3/4 vacuum port, Filter
ML3122-01-2	Magic Pump, “L” type 2-stage, 2-vacuum cartridge, G1 vacuum port, Filter
ML3122-34	Magic Pump, “L” type 2-stage, 2-vacuum cartridge, G3/4 vacuum port
ML3122-01	Magic Pump, “L” type 2-stage, 2-vacuum cartridge, G1 vacuum port

2. Air Control Valve

Part Number	Description
VMS14-3-1	2/2-way sol valve, G1/4″ Inlet, DC 24V, DIN type
VMS14-3-2	2/2-way sol valve, G1/4″ Inlet, DC 24V, DIN type, Lamp
VMS14-3-3	2/2-way sol valve, G1/4″ Inlet, DC 24V, Conn. type, 30 cm lead wire & Lamp
VMS14-2-1	2/2-way sol valve, G1/4″ Inlet, AC 220V, DIN type
VMS14-2-2	2/2-way sol valve, G1/4″ Inlet, AC 220V, DIN type, Lamp
VMS14-1-1	2/2-way sol valve, G1/4″ Inlet, AC 110V, DIN type
VMS14-1-2	2/2-way sol valve, G1/4″ Inlet, AC 110V, DIN type, Lamp
VMS14D-3-1	2/2-way double sol valve, G3/8 In, G1/4 Out, DC 24V, DIN type
VMS14D-3-2	2/2-way double sol valve, G3/8 In, G1/4 Out, DC 24V, DIN type, Lamp
VMS14D-2-1	2/2-way double sol valve, G3/8 In, G1/4 Out, AC 220V, DIN type
VMS14D-2-2	2/2-way double sol valve, G3/8 In, G1/4 Out, AC 220V, DIN type, Lamp
VMS14D-1-1	2/2-way double sol valve, G3/8 In, G1/4 Out, AC 110V, DIN type
VMS14D-1-2	2/2-way double sol valve, G3/8 In, G1/4 Out, AC 110V, DIN type, Lamp

3. Vacuum Switch

Part Number	Description
VP20V-01-F1-C	Digital switch, No analog supply, M8-4-pin connector, NPN (S2)
VP20V-03-F1-C	Digital switch, No analog supply, M8-4-pin connector, PNP (S2P)
VP20V-01-F1	Digital switch, No analog supply, 2 m lead wire, NPN (SG2)
VP20V-03-F1	Digital switch, No analog supply, 2 m lead wire, PNP (SG2P)
VP20V-01-F1-A	Digital switch, Analog supply, 2 m lead wire, NPN (SG3)
VP20V-03-F1-A	Digital switch, Analog supply, 2 m lead wire, PNP (SG3P)

4. Vacuum Cartridge

Part Number	Description
VCL302	Midi vacuum cartridge, “L” type 2-stage
VCL302-N	Midi vacuum cartridge, “L” type 2-stage, Non-return valve ☛ Pump with air saving kit

5. Other Parts

Part Number	Description
VTFE342	Filter element, Polyester filter, 5-micron
VTG-18	Vacuum gauge, Dial type, No mounting nut
VTS-10-A	Free Flow Silencer, Low Noise, G1
