BỘ KẸP CHÂN KHÔNG VMECA SERIES MC20-B
MC20-B
VMECA - KOREA
Theo tiêu chuẩn nhà sản xuất
Mức chân không tối đa: -92 kPa
Lưu lượng chân không mở: 42,2 Nl / phút
Tiêu thụ không khí: 32 Nl / phút @ 4 bar
0985.288.164
HOTLINE TƯ VẤN : 0985.288.164

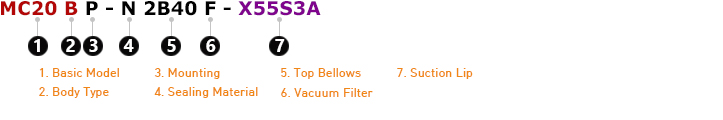

► SƠ ĐỒ CHỌN MÃ KẸP CHÂN KHÔNG VMECA SERIES MC20-B:
1. Basic Model
| Symbol | Description |
| MC20 | Magic gripper, MC20 series, Mini 2-stage cartridge |
2. Body Type
| Symbol | Description |
| A | Single vacuum cartridge |
3. Mounting Type
| Symbol | Description |
| X | No mounting bracket |
| M | Direct mount |
| P | Aluminum profile mount |
4. Sealing Material
| Symbol | Description |
| N | NBR |
| E | EPDM |
| V | Viton |
5. Top Bellows
| Symbol | Description |
| 1B40 | 40 mm, 1-fold top bellows ☛ Only with MC10, MC20, MC25 |
| 1B60 | 60 mm, 1-fold top bellows ☛ Only with MC20, MC25 |
| 2B40 | 40 mm, 2-fold top bellows ☛ Only with MC10, MC20, MC25 |
| 2B60 | 60 mm, 2-fold top bellows ☛ Only with MC20, MC25 |
6. Vacuum Filter
| Symbol | Description |
| X | No vacuum filter |
| F | Vacuum filter, 200-mesh |
7. Suction Lip
1) X-type Suction Lip
| 1) Lip Size | Bellows Size | ||
| Symbol | Description | Ø40 | Ø60 |
| X45 | X-type Lip, 45 mm | O | |
| X55 | X-type Lip, 55 mm | O | |
| X65 | X-type Lip, 65 mm | O | |
| X75 | X-type Lip, 75 mm | O | |
| 2) Lip Material | ||
| Symbol | Description | Color |
| N6 | NBR (Nitrile), 60° Hardness | Blue |
| S3 | Silicone, 30° Hardness | Translucent White |
| S5 | Silicone, 50° Hardness | Red |
| W3 | White Silicone, 30° Hardness | Translucent White |
| W5 | White Silicone, 50° Hardness | Translucent White |
| W3(FDA) | White Silicone, 30° Hardness (FDA) | Translucent White |
| W5(FDA) | White Silicone, 50° Hardness (FDA) | Translucent White |
| U6 | Urethane, 60° Hardness | Dark Grey |
| PU | Polyurethane, 60° Hardness | Translucent Orange |
| 3) Stopper | |
| Symbol | Description |
| A | A-type |
| B | B-type |
| C | C-type |
| D | D-type |
2) U-type Suction Lip
| 1) Lip Size | Bellows Size | ||
| Symbol | Description | Ø40 | Ø60 |
| U45 | U-type Lip, 45 mm | O | |
| U55 | U-type Lip, 55 mm | O | |
| U65 | U-type Lip, 65 mm | O | |
| U75 | U-type Lip, 75 mm | O | |
| 2) Lip Material | ||
| Symbol | Description | Color |
| N6 | NBR (Nitrile), 60° Hardness | Blue |
| S3 | Silicone, 30° Hardness | Translucent White |
| S5 | Silicone, 50° Hardness | Red |
| W3 | White Silicone, 30° Hardness | Translucent White |
| W5 | White Silicone, 50° Hardness | Translucent White |
| W3(FDA) | White Silicone, 30° Hardness (FDA) | Translucent White |
| W5(FDA) | White Silicone, 50° Hardness (FDA) | Translucent White |
| U6 | Urethane, 60° Hardness | Dark Grey |
| PU | Polyurethane, 60° Hardness | Translucent Orange |
| 3) Stopper | |
| Symbol | Description |
| B | B-type |
| C | C-type |
| D | D-type |
3) P-type Suction Lip
| 1) Lip Size | Bellows Size | ||
| Symbol | Description | Ø40 | Ø60 |
| P48 | P-type Lip, 48 mm | O | |
| P60 | P-type Lip, 60 mm | O | |
| P72 | P-type Lip, 72 mm | O | |
| P85 | P-type Lip, 85 mm | O | |
| 2) Lip Material | ||
| Symbol | Description | Color |
| N6 | NBR (Nitrile), 60° Hardness | Blue |
| S3 | Silicone, 30° Hardness | Translucent White |
| S5 | Silicone, 50° Hardness | Red |
| W3 | White Silicone, 30° Hardness | Translucent White |
| W5 | White Silicone, 50° Hardness | Translucent White |
| W3(FDA) | White Silicone, 30° Hardness (FDA) | Translucent White |
| W5(FDA) | White Silicone, 50° Hardness (FDA) | Translucent White |
| U6 | Urethane, 60° Hardness | Dark Grey |
| 3) Stopper | |
| Symbol | Description |
| D | D-type |
4) F-type Suction Lip
| 1) Lip Size | Bellows Size | |
| Symbol | Description | Ø40 |
| F45 | F-type Lip, 45 mm | O |
| F55 | F-type Lip, 55 mm | O |
| 2) Lip Material | ||
| Symbol | Description | Color |
| PU | Polyurethane, 60° Hardness | Translucent Orange |
| 3) Stopper | |
| Symbol | Description |
| B | B-type |
| C | C-type |
| D | D-type |
5) DD-type Suction Lip (Double Lips)
| 1) Lip Size | Bellows Size | |
| Symbol | Description | Ø40 |
| DD4030 | DD-type Lip, Double lip, 30 mm & 41 mm | O |
| 2) Lip Material | ||
| Symbol | Description | Color |
| N6 | NBR (Nitrile), 60° Hardness | Blue |
| S3 | Silicone, 30° Hardness | Translucent White |
| S5 | Silicone, 50° Hardness | Red |
| W3 | White Silicone, 30° Hardness | Translucent White |
| W5 | White Silicone, 50° Hardness | Translucent White |
| W3(FDA) | White Silicone, 30° Hardness (FDA) | Translucent White |
| W5(FDA) | White Silicone, 50° Hardness (FDA) | Translucent White |
| U6 | Urethane, 60° Hardness | Dark Grey |
| 3) Stopper | |
| Symbol | Description |
| D | D-type |
6) S-type Suction Lip (Sponge Foam)
| 1) Lip Size | Bellows Size | ||
| Symbol | Description | Ø40 | Ø60 |
| S50 | S-type Lip, 50 mm | O | |
| S60 | S-type Lip, 60 mm | O | |
| 2) Lip Material | ||
| Symbol | Description | Color |
| E | EPDM, 15° Hardness | Black |
| 3) Stopper | |
| Symbol | Description |
| F | F-type |
7) MU-type Suction Lip
| 1) Lip Size | Bellows Size | ||
| Symbol | Description | Ø40 | Ø60 |
| MU45 | MU-type Lip, 45 mm | O | |
| MU55 | MU-type Lip, 55 mm | O | |
| MU65 | MU-type Lip, 65 mm | O | |
| MU75 | MU-type Lip, 75 mm | O | |
| MU80 | MU-type Lip, 80 mm | O | |
| 2) Lip Material | ||
| Symbol | Description | Color |
| N6 | NBR (Nitrile), 60° Hardness | Blue |
| S3 | Silicone, 30° Hardness | Translucent White |
| S5 | Silicone, 50° Hardness | Red |
| W3 | White Silicone, 30° Hardness | Translucent White |
| W5 | White Silicone, 50° Hardness | Translucent White |
| W3(FDA) | White Silicone, 30° Hardness (FDA) | Translucent White |
| W5(FDA) | White Silicone, 50° Hardness (FDA) | Translucent White |
| U6 | Urethane, 60° Hardness | Dark Grey |
| 3) Stopper | |
| Symbol | Description |
| G | G-type |
8) MF-type Suction Lip
| 1) Lip Size | Bellows Size | ||
| Symbol | Description | Ø40 | Ø60 |
| MF45 | MF-type Lip, 45 mm | O | |
| MF55 | MF-type Lip, 55 mm | O | |
| MF65 | MF-type Lip, 65 mm | O | |
| MF75 | MF-type Lip, 75 mm | O | |
| MF80 | MF-type Lip, 80 mm | O | |
| 2) Lip Material | ||
| Symbol | Description | Color |
| N6 | NBR (Nitrile), 60° Hardness | Blue |
| S3 | Silicone, 30° Hardness | Translucent White |
| S5 | Silicone, 50° Hardness | Red |
| W3 | White Silicone, 30° Hardness | Translucent White |
| W5 | White Silicone, 50° Hardness | Translucent White |
| W3(FDA) | White Silicone, 30° Hardness (FDA) | Translucent White |
| W5(FDA) | White Silicone, 50° Hardness (FDA) | Translucent White |
| U6 | Urethane, 60° Hardness | Dark Grey |
| 3) Stopper | |
| Symbol | Description |
| G | G-type |
