SLIDE CYLINDER FESTO - USA

Narrow ball recirculating slide actuator with fixed cushioning. • Flat design • Ball bearing cage guide • Versatile mounting options

Combination of slide unit and linear drive unit without piston rod. • Magnetic power transmission • Ball bearing guide: combination of slide unit and rodless linear actuator • Individual choice of end-position cushioning and sensing

Extremely flat actuator with precision guide. • Extremely flat design • Highest precision thanks to integrated ball bearing guide • Adjustable end stops • Wide range of supply ports • Available with intermediate position module

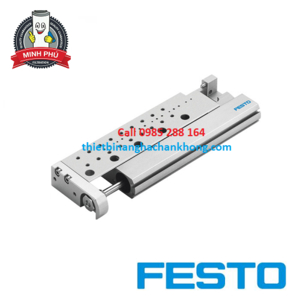

• Low-profile recirculating ball bearing slide unit with versatile adaptation possibilities to other actuators. •Flat design •Ball bearing cage guide •Versatile mounting options •Easy adjustment of end positions

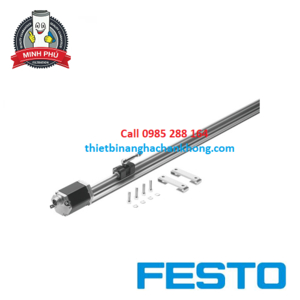

• Measuring principle: magnetostrictive • Contactless with absolute measurement • High travel speed • System product for servopneumatic positioning technology and Soft Stop • IP65 Rating

• Connecting rod potentiometer • Absolute measurement with high resolution • Long service life • IP65 Rating • Plug-in connections

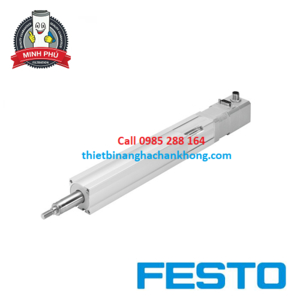

• Linear actuator with permanently attached motor • With ball screw drive • Optional: encoder, holding brake, and internal thread on the piston rod • Two different spindle pitches for high force or high speed • Suitable for simple applications in factory automation that in the past were mostly carried out using pneumatic solutions • Cost-optimized: 28 types and modular products in stock for custom variants • Optional: precise and backlash-free guide • Available as an OMS (Optimized Motion Series

• Complete solution consisting of integrated actuator, motor and servo drive • Resilient toothed belt with long service life • Ideal for precise XY movements, e.g. in assembly plants or when handling small parts as well as for test and inspection systems • Protected against external influences by internal guide • Clean look design: easy to clean and less prone to soiling • Integrated end position sensing • Two control options integrated as standard: digital I/O and IO-Link

• Complete solution consisting of integrated actuator, motor and servo drive • For precise vertical Z movements or individual guided linear movements • Very high-quality ball screw drive with low internal friction Rigid, resilient and precise linear guide for the absorption of lateral forces and increased anti-twist protection Integrated end position sensing • Two control options integrated as standard: digital I/O and IO-Link

• Complete solution consisting of integrated actuator, motor and servo drive • Powerful ball screw drive • Ideal for precise XY movements, e.g. in assembly plants or when handling small parts as well as for test and inspection systems • Protected against external influences by internal guide • Clean look design: easy to clean and less prone to soiling Integrated end position sensing • Two control options integrated as standard: digital I/O and IO-Link

The reasonably priced belt driven linear actuator ELGR with stepper motor offers you a reliable means of executing simple, movements at high speeds. • Optimum price/performance ratio • Ready-to-install unit for quick and easy design • With plain or ball bearing guide • Motor can be mounted on 4 sides • Also available as an OMS (Optimized Motion Series) product

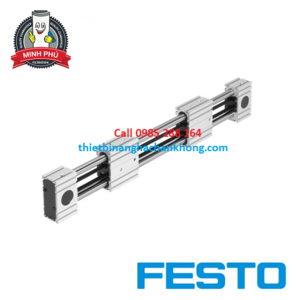

The belt driven linear actuator ELGG with its two synchronized opposing slides is ideal for long centering strokes in the packaging industry, as a gripper with strokes up to 300 mm per side, or as a drive for door movements. • Toothed belt axis with two opposing slides • With low-cost plain bearing and precise ball bearing guide • Optional central support improves the rigidity • Motor can be mounted on 4 sides

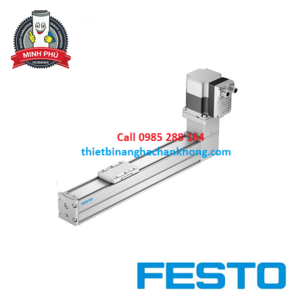

• Complete solution consisting of integrated actuator, motor and servo drive • Cost-optimized design for easy movement and positioning tasks between two mechanical end positions • Running performance of 5000 km • Free choice of flexible motor mounting on four sides • Integrated end position sensing • Two control options integrated as standard: digital I/O and IO-Link • Easy commissioning according to the plug and work principle: all parameters are manually adjustable directly on the actuator

The reasonably priced actuator family ELGC allows you to realize incredibly compact dimensions and make the most of your installation space – for small parts handling, desktop applications and much more. The belt driven linear actuator offers precise, durable rail guidance. • Precise and resilient guide • Internal guide and toothed belt • Flexible motor mounting • The belt driven linear actuators, ball screw linear actuator ELGC and mini slides EGSC form a scalable modular system for compact

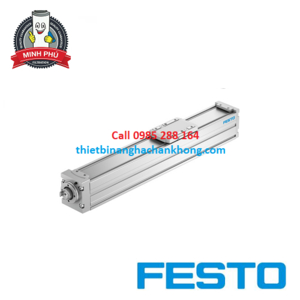

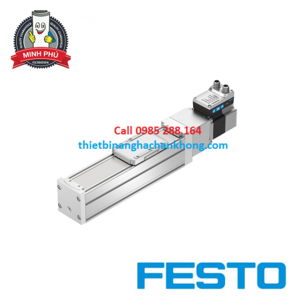

• Internal guide and ball screw drive • Space-saving position sensing • Flexible motor mounting • The belt driven linear actuators, ball screw linear actuator ELGC and mini slides EGSC form a scalable modular system for compact automation

• Integrated plain-bearing guide • For small and medium loads • Low guide backlash • Actuator component for external guides • Speeds up to 5 m/s with high acceleration up to 50 m/s² • Flexible motor mounting • Motor can be mounted on 4 sides

• Integrated roller bearing guide • High speeds up to 10 m/s with high acceleration up to 50 m/s² Guide backlash = 0 mm • Very good operating behavior under torque load • Sturdy alternative to the ball bearing guide • As an actuator for external guides, especially for high speeds • Motor can be mounted on 4 sides • Product information

• Ball bearing guide for high loads and torques • High feed forces • Precise and resilient guide • Speeds up to 5 m/s with high acceleration up to 50 m/s² • Flexible motor mounting • Guide and toothed belt protected by cover band • 22 types in stock with short delivery times and modular products for custom variants

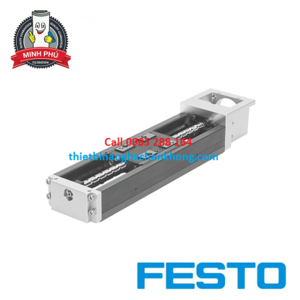

The high-precision EGSK ball screw linear actuator impresses with its excellent repetition accuracy and high rigidity while also being highly compact. • Electromechanical linear axis with ball screw drive • Ball bearing guide and ball screw drive without caged ball bearings • Standardized mounting interfaces • Compact design • High rigidity • 22 types in stock with short delivery times and modular products for custom variants

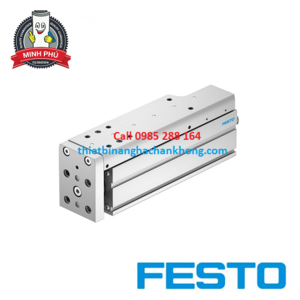

Precise, resilient, dynamic: the electric slide series EGSL is designed for maximum performance—for low-cost unrestricted positioning for vertical applications and for short-stroke slide functions. • Very high rated slide loads, ideal for vertical applications such as press-fitting or joining • Reliable: the completely closed spindle stops dirt or stray small parts getting into the guide area • Axial or parallel motor mounting

The compact, reasonably priced mini slide EGSC is perfect as an individual axis for precise positioning tasks. Thanks to the great connectivity it offers with the axis series ELGC, the mini slide is perfect in 2D or 3D handling systems. • Precise guide and ball screw drive • Compact dimensions • Flexible motor mounting • The belt driven linear actuators, ball screw linear actuator ELGC and mini slides EGSC form a scalable modular system for compact automation

The heavy duty model EGC-HD-BS with 2 guides provides even greater load-bearing capacity than the standard belt driven linear actuator EGC-TB—with the same highly dynamic response and high speed. It also excels with large loads and long strokes. • With heavy-duty guide • Axis for high speeds and accelerations • For high loads and torques, high feed forces • Precision DUO guide rail with high load capacity • Motor can be mounted on 4 sides • For maximum lateral load up to 900 Nm

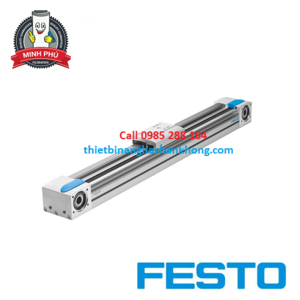

The heavy duty belt driven linear actuator EGC-TB has a unique, optimized cross section for maximum rigidity and resilience. As a dynamic linear actuator, it attains high speeds even with large loads and long strokes. • Axis for high speeds and accelerations • Ball bearing guide for high loads and torques • With optional clamping unit, at one or both ends • Profile with optimized rigidity • 22 types in stock with short delivery times and modular products for custom variants

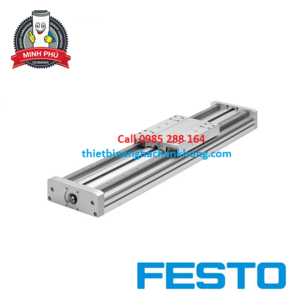

• With heavy-duty guide • Axis for high repeat accuracy • With integrated ball screw drive • For maximum loads and torques • Precision DUO guide rail with high load capacity • For maximum lateral load up to 900 Nm • Ideal as a basic axis for linear gantries and cantilever axes • The spindle support enables maximum travel speed

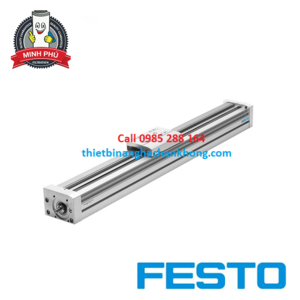

• Axis for high repeat accuracy • Ball bearing guide for high loads and torques • With optional clamping unit, at one or both ends • Profile with optimized rigidity • Various spindle pitches • The spindle support enables maximum travel speed • Axial or parallel motor mounting

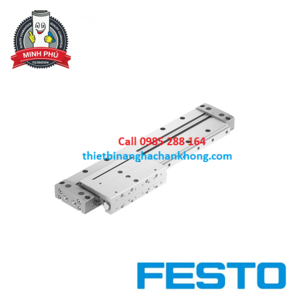

• Extremely flat design • Choice of two damping types: Self-adjusting pneumatic end-position cushioning or external hydraulic shock absorbers • Supply port at the left or right end or at both ends or alternatively from below • Loads and machining jigs can be directly mounted on the slide • Basic design DLGF-G without external guide for simple actuator functions in small installation spaces • Recirculating ball bearing guide DLGF-KF with a standard recirculating ball bearing guide for high torque

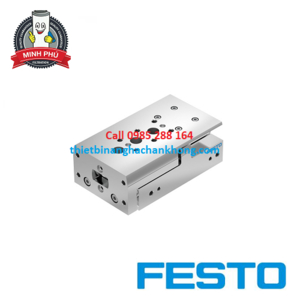

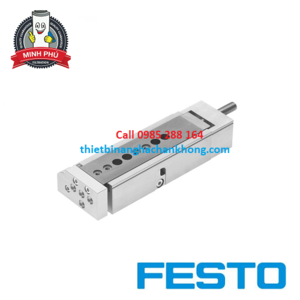

The most compact slide actuator on the market. Integrated pneumatic shock absorber and sensor holders, integrated base cushioning. And best of all - slide and yoke comprise one single part - torsion-resistant with unrivalled precision. • Powerful twin-piston actuator • Shortest mini slide on the market • Precise recirculating ball bearing guide • Versatile mounting options

Slide actuator with ball-bearing guide and diverse adaptation options such as stroke reduction, end-position locking, and clamping unit. High load capacity and positioning accuracy • Maximum movement precision thanks to ground-in ball bearing cage guide • Maximum flexibility thanks to 8 sizes • Reliable in the event of pressure drop thanks to clamping cartridge or end-position locking • Wide variety of mounting and attachment options • Compact design

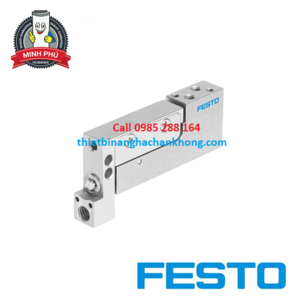

DGSC, the smallest short-stroke linear slide in the range with precise ball-cage guidance for extremely smooth movements or high packing densities. • Smallest guided slide unit on the market • Precision ball bearing cage guide: reliable and high-quality process • Long service life thanks to housing made from high-alloy steel • Low break-away pressure and uniform movement thanks to minimal friction of guide and seal

This positioning axis can be combined with the Modular System for Handling and Assembly Technology. • Ball bearing guide or heavy-duty guide • High precision and load capacity • Wide range of variants for customized applications • The modern alternative is the linear actuator DGC

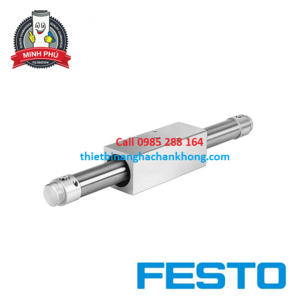

Positioning actuator with magnetic force transmission, without a mechanical connection. The piston chamber and rotor are hermetically sealed. • Magnetic power transmission • Pressure-tight and zero leakage • Dirt-proof and dust-proof

Positioning actuator with eccentric sealing system for virtually leak-free, long strokes without restrictions. Without external guide, for simple actuation functions. • Compact design: 30% smaller than the basic design DGC-G • Basic actuator without guide, for simple actuator functions • Low moving dead weight • Symmetrical design

Positioning actuator with eccentric sealing system for practically leakage-free long strokes without restrictions and with displacement encoders using the non-contact measuring method. • With guide • With linear potentiometer for absolute, contactless measurement • Suitable for servopneumatic applications with stepping motor driver • CPX-CMAX, end-position controller CPX-CMPX, or SPC11 and measuring module CPX-CMIX • Supply ports optionally on end face or front

Heavy-duty ball-screw guide for high loads and torques with end-position cushioning by shock absorber. • For maximum loads and torques thanks to duo rail guide • Very good operating behavior under torque load • Long service life • Ideal as a basic axis for linear gantries and cantilever axes • Wide range of options for mounting on actuator units

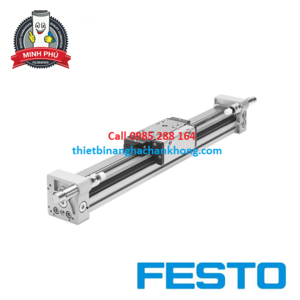

Positioning actuator with eccentric sealing system for virtually leak-free long strokes without restrictions. • Basic design, plain or ball bearing guides, guide axis without actuator • Basic design, plain or ball bearing guides • All settings accessible from one side • With optional variable end stops and intermediate position module Software tool available for bearing calculation • Optional: NSF-H1 lubricant for the food zone • Optional: clamping unit for holding loads
