• Version with one plunger • With non-rotating piston rod • Proximity sensor SME/SMT-8 can be integrated in the housing

• Version with two plungers • With twin piston, non-rotating piston rod, and locking mechanism • Cost-effective: replaces at least two actuators in the feed process • Proximity sensor SME/SMT-8 can be integrated in the housing

The micro gripper for the smallest installation spaces in sizes 8 and 12 with a gripping torque of 11 ... 38 Ncm. Mounting either via clamping flange or external thread. • Micro gripper: compact, handy design • Mounting options with clamping spigot, with flange mounting, with Z stroke compensation • Versatile thanks to externally adaptable gripper fingers

• Secure gripping thanks to precise, polished plain-bearing guides • Gripping force backup via compression springs holds the gripped • workpiece securely in the event of pressure failure • Compression spring also boosts the gripping force for applications involving heavier loads • Optimum cycle times thanks to freely adjustable opening angle up to a maximum of 90° per gripper finger. This prevents the possibility of collisions due to the gripper jaws opening too wide

Rugged T-slot gripper for demanding tasks. Exterior and interior gripping possible. • Sturdy and powerful • With T-slot guide • Suitable for external and internal gripping • Gripper jaw guide protected by sealing air against dust • High-force variant available

Absolutely precise: high-precision pneumatic gripper with gripper jaw guide. • High-precision gripper jaw guide • Suitable for external and internal gripping • Very flexible thanks to versatile attachment, mounting, and application options

Absolutely precise: high-precision pneumatic gripper with gripper jaw guide. • High-precision gripper jaw guide • Suitable for external and internal gripping • Very flexible thanks to versatile attachment, mounting, and application options

Micro gripper for smallest installation spaces in small and handy designs. With flange or clamping flange. • Micro gripper: compact, handy design • Versatile thanks to externally adaptable gripper fingers • Mounting options with clamping spigot, with flange mounting, with Z stroke compensation

Robust long-stroke gripper for components of different sizes with two parallel and mutually opposing pistons. • Space-saving, high forces and torques • Controlled, precise, and centered gripping • Long stroke: long guide length for the gripper jaws • Suitable for external and internal gripping • Opening stroke can be adjusted to optimize time

For rough environments: a fully sealed pneumatic gripper. Exterior and interior gripping possible. • Ideal for very harsh environments • Precise gripping even at high torque load • Max. gripping force with optimum installation space/force ratio • 8 sizes with up to 40 mm total stroke • Repetition accuracy of 0 … 0.05 mm

• Double-acting piston actuator • High gripping force with compact size • Self-centering • Suitable for external and internal gripping • With protective dust cap for use in dusty environments (protection class IP54) • Max. repetition accuracy • Internal fixed throttling • Versatile thanks to externally adaptable gripper fingers • Wide range of options for mounting on actuator units

Rugged T-slot gripper for demanding tasks. Exterior and interior gripping possible. • Synchronous movement of the gripper jaws • With T-slot guide • Suitable for external and internal gripping • Gripper jaw guide protected by sealing air against dust • High-force variant available

Compact combination of gripper and rotary actuator for flexible swivel/gripping tasks. • Combination of parallel gripper and swivel module • Swivel angle infinitely adjustable • Precise end stop with elastic cushioning or integrated shock absorber

For rough environments: a fully sealed gripper. Exterior and interior gripping possible. • Precise gripping with centric movements despite high torque loads • Ideal for very harsh environments • 5 sizes with up to 12 mm stroke/jaw • Repetition accuracy of 0 … 0.05 mm

For clamp strokes against a stop. With pressure chamber fitted with diaphragm. • Compact rodless cylinder with diaphragm • Single-acting, with reset function • Flat design • Hermetically sealed • Pressure plates and foot mounting as accessories

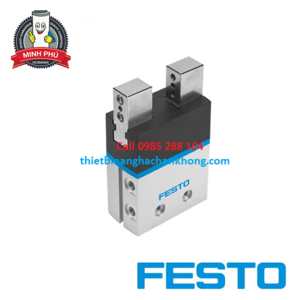

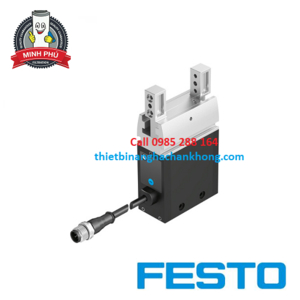

For use without external controller: the electric gripper EHPS. Low noise level. • Electric version of the pneumatically actuated parallel gripper DHPS • Ideal for use as a front-end actuator thanks to its low dead weight • Controller-free actuation using digital signals • Adjustable gripping force (4 settings)

• Fast and simple set-up of transfer systems without compressed air • For stopping conveyed goods weighing between 0.25 kg and 100 kg • Status and error messages for visual error diagnostics • Controlled via digital I/O of a higher-level controller, e.g. terminal CPX, makes commissioning easier • Mounting interface for ease of mounting on transfer systems • Adjustable cushioning power

Ideal for clamping components in welding processes: the round cylinder DW in an articulated design. Joint yoke on the bearing cap. For clamping of components during the welding process • Double-acting • Easy to mount thanks to the swivel bearing on the bearing cap • Integrated throttling • Integrated end-position cushioning • Rod wiper seal to protect against welding spatter • Asian automotive standard for car body production

• Piston rod can be held in any position • Piston rod can be held in position for long periods even with alternating loads, fluctuating operating pressure, or leaks in the system • Mounting hole pattern to ISO 15552 • Piston rod with internal or external thread • Magnetic piston for position sensing

• ISO 15552 (ISO 6431, VDMA 24562) • Self-adjusting pneumatic end-position cushioning which adapts optimally to changes in load and speed • Standard profile with two sensor slots • Wide range of variants for customized applications • Comprehensive range of mounting accessories for just about every type of installation • Magnetic piston for position sensing

• Piston rod can be held and braked in any position • Variant DNCKE-...-S approved for use in safety-oriented parts of control systems • Mounting hole pattern to ISO 15552 • External piston rod thread • Static holding force: up to 8000 N • Magnetic piston for position sensing

The cost-effective standard gripper with high gripping force up to 725 Nm handles most applications effortlessly. In many sizes, with position detection, optional gripping force backup, and high torque load included. • Lateral gripper jaw support for high torque loads • Self-centering • Gripper jaw centering options • Max. repetition accuracy

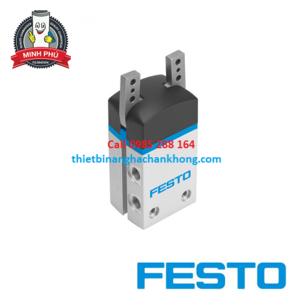

Equipped for a wide range of applications: The standard gripper DHWS ensures a high gripping force. Slotted guide for exterior and interior gripping. • Improved gripper jaw guide • Slotted guide • Internal fixed throttling, does away with the need for external throttling in 90% of applications • Max. repetition accuracy • Wide range of options for mounting on actuator units

The oval piston gives this standardized gripper a powerful grip—in many application scenarios. • Heavy-duty, precision T-slot guide for gripper jaws • High gripping force with compact size • Max. repetition accuracy • Wide range of options for mounting on actuator units

DHEF-20-A

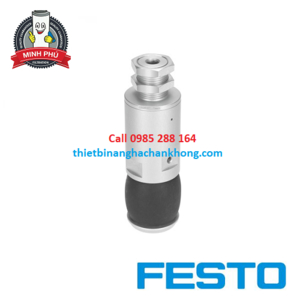

• 11 sizes for gripping diameter from 8 to 85 mm • Direction of movement: bellows upwards or downwards • Different bellows materials: EPDM or silicone • Air connection on the side or from above • Optimized process sequence with increased quality: prevents the workpieces from being scratched • Additional reliability: optional sensing via proximity or position sensor • For gentle internal gripping of delicate workpieces

Versatile in application: standard gripper DHDS with high gripping force. • Heavy-duty, precision T-slot guide for gripper jaws • High gripping force with compact size • Max. repetition accuracy • Wide range of options for mounting on actuator units

Stopper cylinder in rocker arm design with rebound protection and separating stop function. • Roller version, toggle lever design • Absorption of high lateral forces • Direct mounting of solenoid valves on flange plat

• Toggle lever design • Built-in, adjustable pneumatic shock absorber for smooth and adapted stopping • Up to 800 kg impact load • For position sensing on the piston • Adjustable active direction thanks to rotatable toggle lever arrangement (90°, 180°, 270°) • Lever locking mechanism • Toggle lever deactivator • Roller version made from polyamide or steel

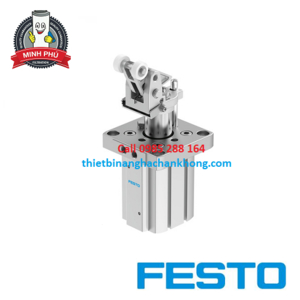

Standard stopper cylinder in trunnion or roller version. • Trunnion version with/without internal thread, with/without protection against rotation • Roller version with protection against rotation • Compact design • Sensor slots on 3 sides • Long service life thanks to very good cushioning characteristics and sturdy piston rod guide • Safe stopping of workpiece carriers, pallets, and packages weighing up to 90 kg

DFLG-160

Product information

A combination of linear cylinder and swivel unit in one housing. The clamping finger is also available with a removable rubber cap as an accessory to protect sensitive surfaces. • Swiveling and clamping in one step • Adjustable swivel direction • Clamping fingers as accessories • With optional dust and welding spatter protection • Double-acting • Magnetic piston for position sensing

• Piston rod can be held in any position • The piston rod can be held in position for long periods even with alternating loads, fluctuating operating pressure in the system, or loss of pressure • Mounting hole pattern to ISO 21287 • Piston rod with internal or external thread • Magnetic piston for position sensing

Narrow ball recirculating slide actuator with fixed cushioning. • Flat design • Ball bearing cage guide • Versatile mounting options

Combination of slide unit and linear drive unit without piston rod. • Magnetic power transmission • Ball bearing guide: combination of slide unit and rodless linear actuator • Individual choice of end-position cushioning and sensing
