Regulator SMC-JAPAN

• Series: ZFC050 • Clarity: 3μm, 20μm (Nominal) • Internal connector: M5 x 0.8, φ6 barb • External connector: M5 x 0.8

• Operating pressure range: −100 kPa to 1.0 MPa • Both positive pressure and vacuum pressure can be used with one unit. • Filtration: 5 μm, 10 μm • With lock mechanism • During positive pressure, it prevents components from being scattered • when they are loosened. • 2 types of transparent case materials are available: • Polycarbonate (Standard), Nylon

Model. AL10. AL20. AL30. AL40. AL40-06. AL50

• Series: AL800 / 900 • Capacity: 440, 1000 cm3 • Connector: 1 1/4, 1 1/2, 2 "

• Capacity: 5,000 - 9,000 cm3 • Connector: Air 1/4, Oil 3/8 "

• Series: ALF400 to 900 • Capacity: 5,000 - 9,000 cm3 • Connector: 1/4, 3/8, 1/2, 3/4, 1 1 1/4, 1 1/2, 2 "

• Series: ALD600 / 900, ALDU600 / 900 • Capacity: 2,000 - 5,000 cm3 • Connector: 3/4, 1, 1 1/4, 1 1/2, 2 "

• Series: AL20-D to AL40-D • Capacity: 25 to 135 cm3 • Connector: 1/8, 1/4, 3/8, 1/2 "

• Series: AL10 to 60-A • Capacity: 7 to 135 cm3 • Connector: M5, 1/8, 1/4, 3/8, 1/2, 3/4, 1 "

• Purification: 0.3 μm • Connector: 1/4, 3/8, 1/2, 3/4, 1 "

• Series: 10-AWD20 to 40, 21-AWD20 to 40 • Pressure: 0.05 to 0.85 (Mpa) • Purification: 0.01 μm • Connector: 1/8, 1/4, 3/8, 1/2 "

• Series: 10-AWM20 to 40, 21-AWM20 to 40 • Pressure: 0.05 to 0.85 (Mpa) • Purification: 0.3 μm • Connector: 1/8, 1/4, 3/8, 1/2 "

• Series: 10-AW20K to 40K, 21-AW20K to 40K • Pressure: 0.05 to 0.85 (Mpa) • Purification: 5 μm • Connector: 1/8, 1/4, 3/8, 1/2, 3/4 "

• Series: 10-AW20 to 40, 21-AW20 to 40 • Pressure: 0.05 to 0.85 (Mpa) • Purification: 5 μm • Connector: 1/8, 1/4, 3/8, 1/2, 3/4 "

• Series: AW30 / 40-X2622 • Pressure: 0.05 to 0.85 (Mpa) • Purification: 5 μm • Connector: 1/4, 3/8, 1/2 "

• Series: AW30-B to AW60-B-X440 • Temperature: -5 to 80 ℃ • Pressure: 0.02 to 0.2 (Mpa) • Purification: 5 μm • Connector: 1/4 to 1 "

• Series: AW30-B to AW60-B-X430 • Temperature: -30 to 60 ℃ • Pressure: 0.05 to 0.85 (Mpa) • Purification: 5 μm • Connector: 1/4 to 1 "

• Series: AWG20K to 40K • Pressure: 0.05 to 0.85 (Mpa) • Purification: 5 μm • Connector: 1/8, 1/4, 3/8, 1/2 "

• Series: AWG20 to 40 • Pressure: 0.05 to 0.85 (Mpa) • Purification: 5 μm • Connector: 1/8, 1/4, 3/8, 1/2 "

• Series: AWG20K to 40K-B • Áp suất: 0.05 to 0.85 (Mpa) 0.02 to 0.2 (Mpa) • Độ tinh lọc: 5 μm • Đầu kết nối: 1/8, 1/4, 3/8, 1/2"

• Series: AWG20 to 40-B • Pressure: 0.05 to 0.85 (Mpa) 0.02 to 0.2 (Mpa) • Purification: 5 μm • Connector: 1/8, 1/4, 3/8, 1/2 "

• Series: AWM20 to 40 • Pressure: 0.05 to 0.85 (Mpa) • Purification: 0.3 μm • Connector: 1/8, 1/4, 3/8, 1/2 "

• Series: AWD20 to 40 • Pressure: 0.05 to 0.85 (Mpa) • Purification: 0.01 μm • Connector: 1/8, 1/4, 3/8, 1/2 "

• Series: AW20 to 60-B • Pressure: 0.05 to 0.85 (Mpa) • Purification: 5 μm • Connector: 1/4, 3/8, 1/2 "

• Series: AW20 to 60-B • Pressure: 0.05 to 0.85 (Mpa) 0.02 to 0.2 (Mpa) • Purification: 5 μm • Connector: 1/8, 1/4, 3/8, 1/2, 3/4, 1 "

• Series: AW10 to 40-A • Pressure: 0.05 to 0.7 (Mpa) 0.02 to 0.2 (Mpa) • Purification: 5 μm • Connector: M5, 1/8, 1/4, 3/8, 1/2, 3/4 "

• Series: AW20K to 40K-D • Pressure: 0.05 to 0.85 (Mpa) 0.02 to 0.2 (Mpa) • Purification: 5 μm • Connector: 1/8, 1/4, 3/8, 1/2 "

• Series: AW20 to 40-D • Pressure: 0.05 to 0.85 (Mpa) 0.02 to 0.2 (Mpa) • Purification: 5 μm • Connector: 1/8, 1/4, 3/8, 1/2 "

• Purification: 5 μm • Connector: 1 1/4, 1 1/2, 2 "

• Prevents problems with vacuum equipment! • Nominal filtration rating: 5, 40, 80 μm • Large flow capacity: 180, 380, 660L/min (ANR) • Elements can be reused by washing them. • Water droplets can be removed. • The bowl is covered with a transparent bowl guard. • Port size: 1/8, 1/4, 3/8, 1/2"

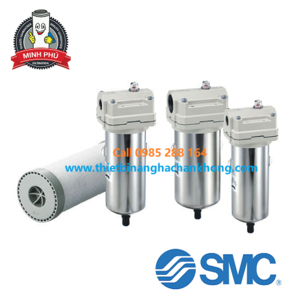

• Increase in an air flow capacity due to lower pressure drop contributing, to energy saving • Flow capacity: 7 to 14.5 m3/min (ANR) • Filtration: 1.0 μm (Filtration efficiency 99%) • Increased by up to 20% compared with the current model • Pressure drop: 5 kPa or less • Lightweight: Max. 52% lighter (10.5kg→5.0kg) • Light body weight to thinner stainless steel bowl. • Space-saving design, Labor-saving in piping! • Port size: 1,1/2, 2'

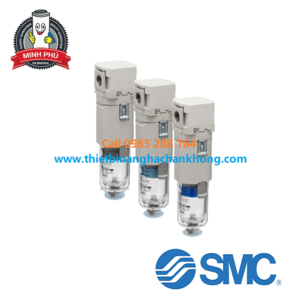

• Filtration: 1.0 μm (Filtration efficiency 99%) • Air flow (ANR): 300 to 1500L / min • Face size and depth reduction 30% • Connector: 1/8, 1/4, 3/8, 1/2 " • Weight loss 50% AFF / AM □ 20: 0.19 kg (Existing model: 0.38 kg) • Theline of the Adsenseration increased by 50% • Eraser: 10 kPa or less • Easy to replace filter core • Transparent protective bowl (Double layer design)

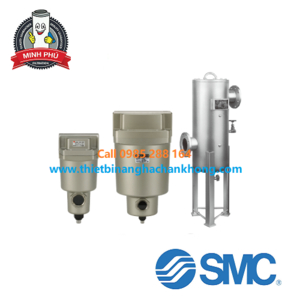

• Can remove impurities, such as oil, water and foreign substances, in the compressed air, improve the function of downstream dryers, prolong the life of precision filters and prevent problems with device • Purification: 3 μm (efficiency 99%) • The module can be connected to the AFF 2C to 22C • Port sizes: 1/8, 1/4, 3/8, 3/4, 1, 1 1/2, 2 "

• Purification: 3 μm (efficiency 99%) • Air flow (ANR): 300 to 1200L / min • Connector: 1/8 to 2 "

• Purification: 5 μm (efficiency 99%) • Connector: 1/8, 1/4, 3/8, 1/2, 3/4, 1 "

• Purification: 0.3 μm (efficiency 99%) • Connector: 1/8, 1/4, 3/8, 1/2, 3/4 "
