Vacuum pad for Handling Sheet Metal

• Handling of metal sheets with fast acceleration rates (shorter cycle times) • Handling of thin steel sheets and aluminium sheets without deformation • Secure gripping of oily metal sheets thanks to special groove on the bottom of the suction cup

• Round, flat suction cup for applications in multi-shift operations with very shortcycle times • Handling of oily metal sheets (automobile production), cardboard and sheets of wood • Handling of extremely abrasive workpieces such as rough cardboard sheets

• Round bellows suction cups with 2.5 folds for handling sheet metal parts such as in CNC metal and laser cutting machines • Applications with requirements for high holding forces and resistance to lateral forces even on oily and contaminated workpiece surfaces • Use in area gripping systems and "suction cup carpets"; optional integration of flow restrictor to reduce leakage occurring at partial occupancy

• Handling structural parts with edges and narrow radii • Handling workpieces which, due to their design, feature few even surfaces for suction pick-up • Reliable handling with extremely high holding force • Extremely dynamic handling for shortening cycle times • Handling sheet metal in body and press shops (hot forming) • Suction cups are not suitable for flat components

• Handling of structural parts with edges and narrow radii • Handling of workpieces designed with little even surfaces for suction • Handling with highest holding forces for safe processing, even with oiled surfaces • Highest dynamic handling for shortening cycle times • Handling of sheet metal for body-shop and press-shop applications (cold and hot forming) • Suction cups not suitable for flat workpieces

• Handling of metal sheets with very dynamic movements (shorter cycle times) • Handling of thin steel sheets and aluminum sheets without deformation • For use e.g. in feeder systems for press lines in the automobile industry • Special slot on the bottom prevents oily sheets from slipping, permitting precise positioning in laser-cutting machines and stamping presses • Handling of sheet-metal parts with small curvature radii • Preformed metal sheets can be handled thanks to the optimum adjustment

• Handling of metal sheets with very dynamic movements (shorter cycle times) • Handling of thin steel sheets and aluminum sheets without deformation • For use e.g. in feeder systems for press lines in the automobile industry • Handling of long, narrow parts made of sheet metal, such as reinforcing ribs and plates • Special slot on the bottom prevents oily metal sheets from slipping, permitting precise positioning in laser-cutting machines and stamping presses • Handling sheet-metal parts with sm

• Oval bell-shaped suction cup for handling of long, oiled workpieces with extremely small curved radii • Very dynamic handling of metal sheets (short cycle times) • Inner support for deformation-free handling of thin steel sheets and aluminum sheets or deep-drawing • Usage in feeder systems for press lines in the automobile industry • Slot lot on the bottom prevents oily sheets from slipping; permits precise positioning in stamping presses etc.

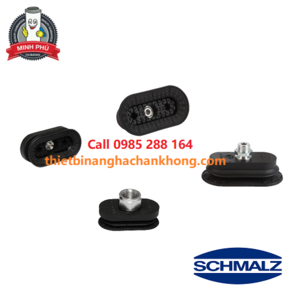

• Oval bellows suction cup with 1.5 folds for most dynamic handling of hot metal sheets up to 250° C • Unloading e.g. of elongated workpieces after forming, e.g. reinfored ribs and plates • Handling of formed sheet metal parts; fold structure allows optimal adjustment • Handling of thin aluminum sheets without deformation or deep drawing • For use e.g. in feeder systems for press lines in the automotive industry

• Oval bellows suction cup with 1.5 folds for dynamic handling of long, narrow workpieces e.g. reinforcing ribs and plates • Handling of thin steel sheets and aluminum sheets without deformation or deep-drawing • For use e.g. in feeder systems for press lines in the automotive industry • Groove on the bottom prevents the oily sheets from slipping and permits precise positioning in stamping presses etc.

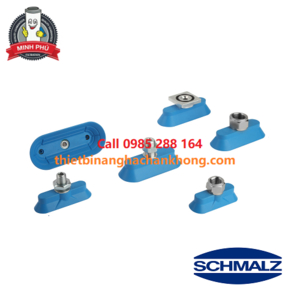

• Oval, flat suction cup for dynamic handling of metal sheets with short cycle times • Handling of thin steel sheets and aluminum sheets without deformation or deep-drawing • For use e.g. in feeder systems for press lines in the automotive industry • Handling of long, narrow metal sheet parts, e.g. reinforcing ribs and plates • Groove on the bottom prevents oily sheets from slipping and permits precise positioning in stamping presses etc.

• Handling of metal sheets with fast acceleration rates (shorter cycle times) • Handling of thin steel sheets and aluminium sheets without deformation • Handling of shaped sheet-metal parts; bellows design permits optimal adaptation • Suitable for use in, for example, feeder systems in press lines in the automotive industry • Secure gripping of oily metal sheets thanks to special groove on the bottom of the suction cup

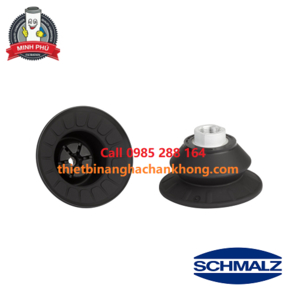

• Round bellows suction cup with 1.5 folds for dynamic handling of hot metal sheets up to 250° C • Handling of pre-shaped metal sheet parts, bellows shape permits optimum adaptation • Unloading of parts after forming • Handling of thin aluminum sheets without deformation or deep drawing • For use e.g. in feeder systems for press lines in the automotive industry

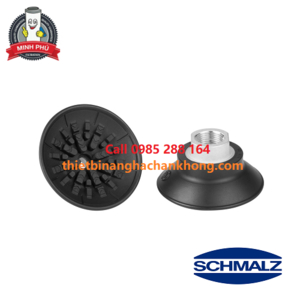

• Round, flat suction cups for dynamic handling of hot metal sheets up to 250 °C (short cycle times) • Unloading of parts after forming • Handling of thin aluminum sheets without deformation or deep drawing • For use e.g. in feeder systems for press lines in the automobile industry

• Round, flat suction cup for dynamic handling of metal sheets with very short cycle times • Handling of thin steel sheets and aluminum sheets without deformation • For use in feeder systems for press lines in the automotive industry • Special groove on the bottom prevents oily sheets from slipping, permitting precise positioning in stamping presses etc.s

• Oval high-speed suction cup for applications with demands for highest holding forces and shear forces especially for narrow metal sheets and car body parts • Handling of long workpieces, workpieces with internal ribbing and reinforcing plates • Handling of workpieces with oily surfaces • Loading and unloading CNC metal and laser cutting machines • Handling of workpieces with convex surfaces

• High-speed suction cups with demands for highest holding and shear forces for fast handling of sheet metal and car body parts • Handling of workpieces with oily surfaces • Loading and unloading CNC metal and laser cutting machines • Handling of blanks at destackers • Handling of workpieces with convex surfaces

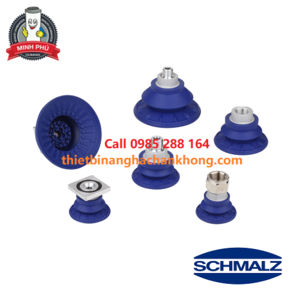

• Round, bellows suction cup with 1.5 folds for dynamic handling of metal sheets (short cycle times) • Handling of thin steel sheets and aluminum sheets without deformation • Handling of pre-shaped metal sheet parts, since bellows shape permits optimum adaptation • For use e.g. in feeder systems for press lines in the automotive industry • Special groove on the bottom of the cup prevents the oily metal sheets from slipping and permits precise positioning in punching presses etc.

• Lightweight high-speed suction cups with demands for highest holding and shear forces for fast handling of sheet metal and car body parts • Handling of workpieces with oily surfaces • Loading and unloading CNC metal and laser cutting machines • Handling of blanks at destackers • Handling of workpieces with convex surfaces
