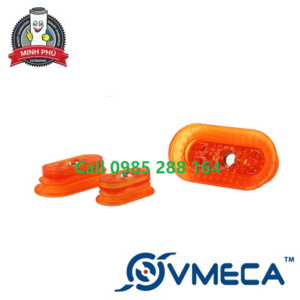

VACUUM PAD VMECA SERIES VOBF

• Lifting force (↑): 22.3 Kg @ -60 kPa • Lifting force (→): 29.1 Kg @ -60 kPa • Volume: 66.50 cm³ • Diameter: 112 mm • VOBF suction cups are great for handling long and narrow objects with flat and curved surfaces. The grooves on the suction cup enhance friction between the handling object and the suction cup. Application: • Car windshield • Car doors • Cards • Recessed panel

• Lifting force (↑): 12.8 Kg @ -60 kPa • Lifting force (→): 15.6 Kg @ -60 kPa • Volume: 22.50 cm³ • Diameter: 82 mm • VOBF suction cups are great for handling long and narrow objects with flat and curved surfaces. The grooves on the suction cup enhance friction between the handling object and the suction cup. Application: • Car windshield • Car doors • Cards • Recessed panel VACUUM PAD VMECA SERIES VOBF

• Lifting force (↑): 7.6 Kg @ -60 kPa • Lifting force (→): 7.8 Kg @ -60 kPa • Volume: 11.0 cm³ • Diameter: 62 mm • VOBF suction cups are great for handling long and narrow objects with flat and curved surfaces. The grooves on the suction cup enhance friction between the handling object and the suction cup. Application: • Car windshield • Car doors • Cards • Recessed panel
