SMC COMPRESSED AIR

・Capable of air cylinder multipoint positioning and control ・Fast response and high positioning repeatability 　Positioning repeatability: ±0.5 mm ・Easier maintenance due to unitization ・Built-in self-diagnosis function (LED lamp and signal output) ・Emergency stop of the piston when the air or power supply is cut

・Equipped with an intermediate stop mechanism ・Two-stage strokes are possible with just 　a minute extension.

・Provides 10 to 20 times the energy absorption capacity of general 　purpose cylinders (CG1 series) ・Smooth cushioning from high-speed operation (3000 mm/s) with 　light loads to low/medium-speed operation with heavy loads ・XC93: With greater water resistance + a stable lubrication function 　5 times stronger against water (liquids) than the standard model 　(RHC series)

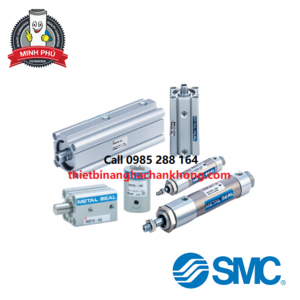

・Covers a range of driving speeds and output controls not 　possible with standard cylinders thanks to its metal 　seal structure with minimal sliding resistance

・Reduces adhesion/quick extension ・Smooth operation is possible even at 0.5 mm/s. 　(1 mm/s for ø16 or smaller) ・The minimum operating pressure has been reduced by half. 　(Compared to the previous version) ・Improved functions (The new structure is equivalent to 　the standard models.) ・Interchangeable with the standard models ・With auto switch (CDJ2X-Z series: CDJ2X-Z, CDM2X-Z series: CDM2X, 　CDQSX series: CDQSX, CDQ2X series: CDQ2X, CDUX series: CDUX)

・Reduces adhesion/quick extension ・Smooth operation is possible even at 0.5 mm/s. 　(1 mm/s for ø16 or smaller) ・The minimum operating pressure has been reduced by half. 　(Compared to the previous version) ・Improved functions (The new structure is equivalent to 　the standard models.) ・Interchangeable with the standard models ・With auto switch (CDJ2X-Z series: CDJ2X-Z, CDM2X-Z series: CDM2X, 　CDQSX series: CDQSX, CDQ2X series: CDQ2X, CDUX series: CDUX)

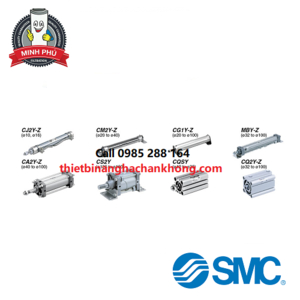

Reduces stick-slip in a low-speed range Stable operation is possible even at a low speed of 5 mm/s. (Measurement based on JIS B 8377) Low sliding is possible even in bi-directional operations. Lightweight/Improved functions (The new structure is equivalent to the standard models.) Interchangeable with the standard models With auto switch (CDJ2Y-Z series: CDJ2Y, CDM2Y-Z series: CDM2Y-Z, CDG1Y-Z series: CDG1Y, MDBY-Z series: MDBY, CDA2Y-Z series: CDA2Y, CDS2Y series: CDS2Y, CDQSY series: CDQSY, CD

Reduces stick-slip in a low-speed range Stable operation is possible even at a low speed of 5 mm/s. (Measurement based on JIS B 8377) Low sliding is possible even in bi-directional operations. Lightweight/Improved functions (The new structure is equivalent to the standard models.) Interchangeable with the standard models With auto switch (CDJ2Y-Z series: CDJ2Y, CDM2Y-Z series: CDM2Y-Z, CDG1Y-Z series: CDG1Y, MDBY-Z series: MDBY, CDA2Y-Z series: CDA2Y, CDS2Y series: CDS2Y, CDQSY series: CDQSY, CD

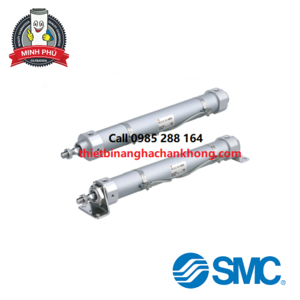

・Allows the high-speed transfer of a workpiece which must 　avoid shock/impact

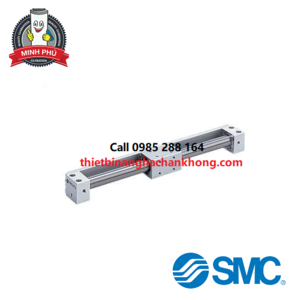

・Allows the high-speed transfer of a workpiece which must 　avoid shock/impact ・Maximum speed: 600 mm/s

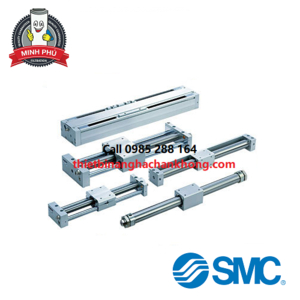

・Allows the high-speed transfer of a workpiece which must 　avoid shock/impact ・Maximum speed: 300 mm/s

・A brake mechanism has been compactly integrated into 　the slide table. ・Enables intermediate stops

・Compact guide cylinder with a built-in lock mechanism ideal 　for drop prevention when the air supply is shut off 　(Single-directional lock)

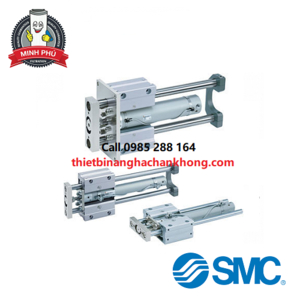

・Stopping possible at any stroke position 　Drop prevention when the pressure is decreased 　or the residual pressure is released ・Weight reduced by up to 17% with a shorter 　guide rod and thinner plate 　Guide rod: Max. 22 mm shorter (Compared with the existing MLGPM) ・Small auto switches or magnetic field-resistant auto switches 　can be directly mounted on two surfaces.

・Locking cylinder ideal for drop prevention when 　the air supply is shut off (Single-directional lock) ・With auto switch (MDLU series: MDLU)

・Locking cylinder ideal for drop prevention when the air supply is 　shut off ・Compact cylinder with a built-in air cushion and lock unit 　 (Single-directional lock) ・With auto switch (RDLQ series: RDLQ)

・Locking cylinder ideal for drop prevention when the air supply is 　shut off (Single-directional lock) ・With auto switch (CDLQ series: CDLQ)

・Locking cylinder ideal for intermediate stops, emergency 　stops, and drop prevention (Bi-directional lock) ・With auto switch (CDLS series: CDLS)

・Locking cylinder ideal for intermediate stops, emergency stops, 　and drop prevention (Bi-directional lock) ・With auto switch (CDNS series: CDNS)

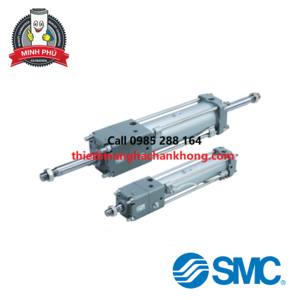

・Locking cylinder ideal for intermediate stops, emergency stops, 　and drop prevention (Bi-directional lock) ・Magnetic field resistant 2-color indicator solid state auto switch 　D-P3DW□ series mountable ・With auto switch (CDNA2 series: CDNA2, CDNA2W)

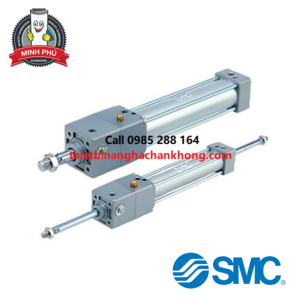

・Locking cylinder ideal for intermediate stops, emergency stops, 　and drop prevention (Bi-directional lock) ・With auto switch (MDNB series: MDNB, MDNBW)

A safety mechanism can be designed if required. It can also be combined with a wide variety of actuators. ・Prevents the workpiece from falling ・Retains the workpiece position even when the air supply 　is shut off due to power failure, etc.

・Lock can be manually operated with a hexagon wrench. 　Easily mounted onto equipment ・Separate construction for improved ease of maintenance ・Holding force improved by 15% ・High stopping accuracy within ±1 mm ・Overall length reduced by 18 mm max. ・With Lock Status Indication (-X3030)

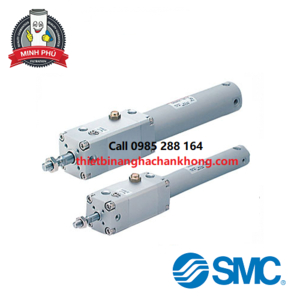

・Locking cylinder ideal for intermediate stops, emergency stops, 　and drop prevention (Bi-directional lock) ・With auto switch (CDNG series: CDNG)

・This linear transfer unit integrates a locking cylinder (Ideal for 　intermediate stops, emergency stops, and drop prevention) 　and a guide. (Bi-directional lock)

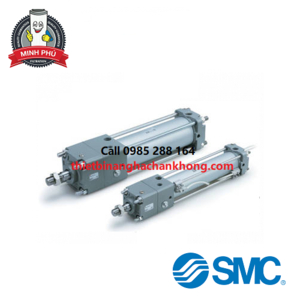

・Locking cylinder ideal for intermediate stops, emergency stops, 　and drop prevention (Bi-directional lock) ・Magnetic field resistant 2-color indicator solid state auto switch 　D-P3DW□ series mountable ・With auto switch (CDLA2 series: CDLA2)

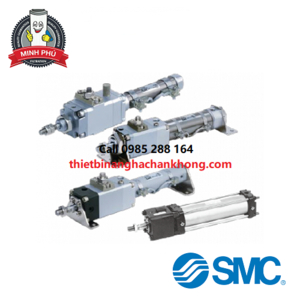

・Locking cylinder ideal for intermediate stops, emergency stops, 　and drop prevention (Bi-directional lock) ∗ CL1: Single-directional lock ・With auto switch (CDL□ series: CDLJ2, CDLM2, CDLG1, CDL1)

・Compact cylinder with a high-precision guide function 　for pick & place applications

・Features a more compact body compared to 　the CXS series dual rod cylinder 　Auto switches can be confirmed from 4 directions. 　Axial piping is also available. (Bore size: 6 and 10)

・Integrated worktable and actuator ・Highly rigid and accurate slide table

・Built-in shock absorber that absorbs impact ・Can be mounted on the housing or on the plate 　Highly precise parallelism of cylinders and workpieces ・With auto switch (CDBXW series: CDBXWM, CDBXWL, 　CDPXW series: CDPXWM, CDPXWL)

・It is possible to install a shock absorber that absorbs impact 　and noise as desired. 　Ideal for workpiece transfers requiring positional accuracy ・With auto switch (CDBX2 series: CDBX2, CDPX2 series: CDPX2)

・Integrated compact guide cylinder (MGP series) and manual 　turntable ・High-precision bearings for smooth turning return movement ・The table unit has positioning mechanisms for each 90° 　and 180° of rotation.

・Doubles the output in the extending direction with its 　unique structure 　A built-in non-rotating mechanism using slide keys allows 　for loads to be mounted directly.

・Low-profile compact cylinder ・Cylinder with a large concentric guiding sleeve that provides 　excellent eccentric load resistance

・Linear transfer unit with compact guide body and front plate ・Compact, lightweight, and space saving
