SMC Guide Cylinders

・Compact cylinder with a high-precision guide function 　for pick & place applications

・Features a more compact body compared to 　the CXS series dual rod cylinder 　Auto switches can be confirmed from 4 directions. 　Axial piping is also available. (Bore size: 6 and 10)

・Integrated worktable and actuator ・Highly rigid and accurate slide table

・Built-in shock absorber that absorbs impact ・Can be mounted on the housing or on the plate 　Highly precise parallelism of cylinders and workpieces ・With auto switch (CDBXW series: CDBXWM, CDBXWL, 　CDPXW series: CDPXWM, CDPXWL)

・It is possible to install a shock absorber that absorbs impact 　and noise as desired. 　Ideal for workpiece transfers requiring positional accuracy ・With auto switch (CDBX2 series: CDBX2, CDPX2 series: CDPX2)

・Integrated compact guide cylinder (MGP series) and manual 　turntable ・High-precision bearings for smooth turning return movement ・The table unit has positioning mechanisms for each 90° 　and 180° of rotation.

・Doubles the output in the extending direction with its 　unique structure 　A built-in non-rotating mechanism using slide keys allows 　for loads to be mounted directly.

・Low-profile compact cylinder ・Cylinder with a large concentric guiding sleeve that provides 　excellent eccentric load resistance

・Linear transfer unit with compact guide body and front plate ・Compact, lightweight, and space saving

・Basic cylinder with integrated guide rods in a compact 　configuration ・A linear transfer unit that achieves lateral load resistance 　and high non-rotating accuracy

・Air cylinder with an integrated guide that achieves lateral 　load resistance and high non-rotating accuracy ・Suitable for stoppers and lifters in the conveyor line

・The guide pitch has been doubled. ・The allowable rotational torque of the plate has been improved. 　The non-rotating accuracy of the plate has been improved. ・Equivalent weight to the basic type

・Now more lightweight and compact due to 　the adoption of a rectangular piston 　Width: 21% reduction (48 mm→38 mm) 　Weight: 37% reduction (3.29 kg→2.07 kg) 　Overall length: 7% reduction (100 mm→93 mm) ・The allowable lateral load and the allowable kinetic energy are 　the same as those of the existing MGP series model. ・The allowable rotational torque of the plate and the non-rotating 　accuracy are the same as those of the existing MGP series model.

・Weight reduced by up to 24% with a shorter guide rod and 　thinner plate. ・The space required between the bottom of the cylinder body 　and your equipment is reduced because of the shortening of 　the guide rod by a max. of 22 mm. ・Round type and magnetic field resistant auto switches can be 　mounted directly without a spacer. ・With flange MGP□F

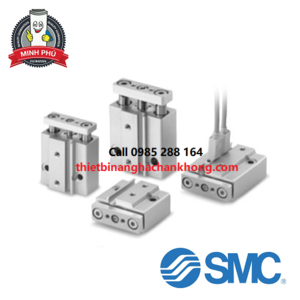

・Overall length: 23 + Stroke mm/Width: 29 mm/ 　Height: 14.5 mm (MGJ6) ・2 auto switches can be mounted even for 5 strokes. ・Integral wiring/piping to one direction ・Non-rotating accuracy: ±0.1°

・Overall length: 23 + Stroke mm/Width: 29 mm/ 　Height: 14.5 mm (MGJ6) ・2 auto switches can be mounted even for 5 strokes. ・Integral wiring/piping to one direction ・Non-rotating accuracy: ±0.1°
